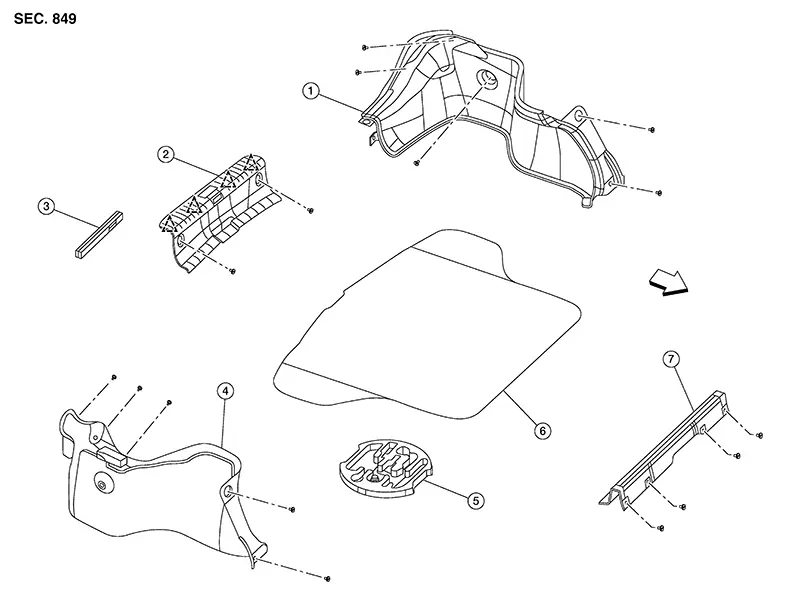

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Trunk side finisher (LH) |
2. |
Trunk rear plate |
3. |
Reflector box assembly |
|
4. |
Trunk side finisher (RH) |
5. |
Box assembly |
6. |
Trunk floor trim |
|
7. |
Lower seatback finisher |
|
Clip |
|
Pawl |
|
|
Front |
Trunk Room Trim
...
Trunk Rear Plate
Removal and Installation
Removal and Installation
REMOVAL
Remove
trunk floor trim. Refer to Exploded View.
Remove
clips (A).
Using a
suitable tool, release clips and ...
