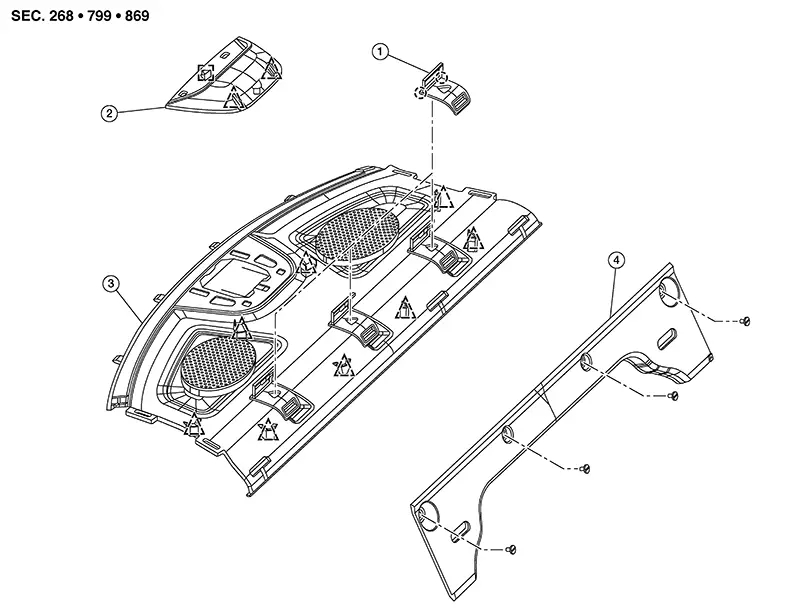

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Top tether strap anchor finisher |
2. |
High-mounted stop lamp |
3. |
Rear parcel shelf finisher |
|
4. |
Rear seatback finisher |
|
Pawl |
|
Clip |
|
|
Metal clip |
Removal and Installation
Removal and Installation
REMOVAL
Remove
high-mounted stop lamp. Refer to Removal and Installation.
Remove rear
pillar finisher (LH/RH). Refer to Removal and Installation — Rear Pill ...
