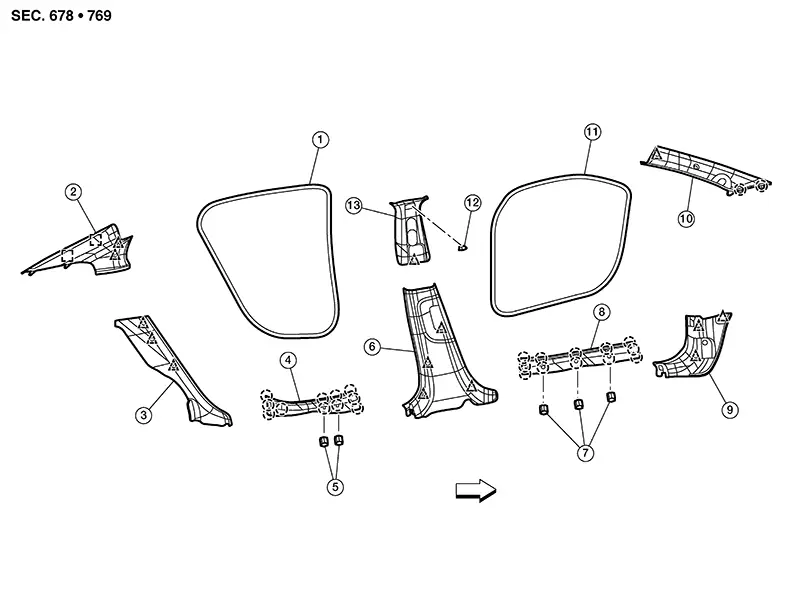

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Rear body side welt |
2. |
Rear pillar upper finisher |
3. |
Rear pillar lower finisher |
|
4. |
Rear kicking plate |
5. |
Clip |
6. |
Center pillar lower finisher |
|
7. |
Clip |
8. |
Front kicking plate |
9. |
Dash side finisher |
|
10. |
Front pillar finisher |
11. |
Front body side welt |
12. |
Cap |
|
13. |
Center pillar upper finisher |
|
Clip |
|
Pawl |
|
|
Metal clip |
|
Front |
Body Side Trim
...
Front Pillar Finisher
Removal and Installation
Removal and Installation
REMOVAL
Partially
remove the front body side welt along the front pillar
finisher.
Using a
suitable tool, release clips and pa ...
