Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

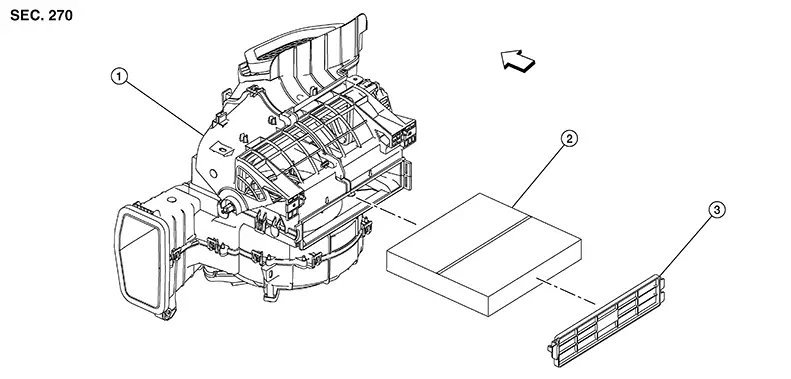

Exploded View

1.

Heating and cooling unit assembly

2.

In-cabin microfilter

3.

In-cabin microfilter cover

Front

In-Cabin Microfilter
...

Removal and Installation
Removal and Installation REMOVAL Remove glove box assembly. Refer to Removal and Installation. Remove the in-cabin microfilter cover. Remove in-cabin microfilter. INSTAL ...
