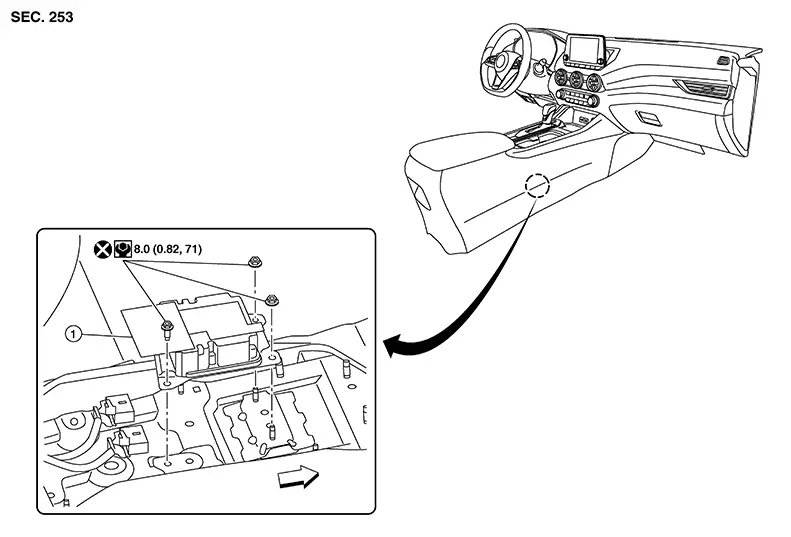

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Air bag diagnosis sensor unit |
|
Front |
CVT model shown; M/T model similar.
Removal and Installation
Removal and
Installation
REMOVAL
Warning:
Before servicing the SRS, place the ignition switch
in the OFF position, disconnect both battery terminals and wait a ...
