Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

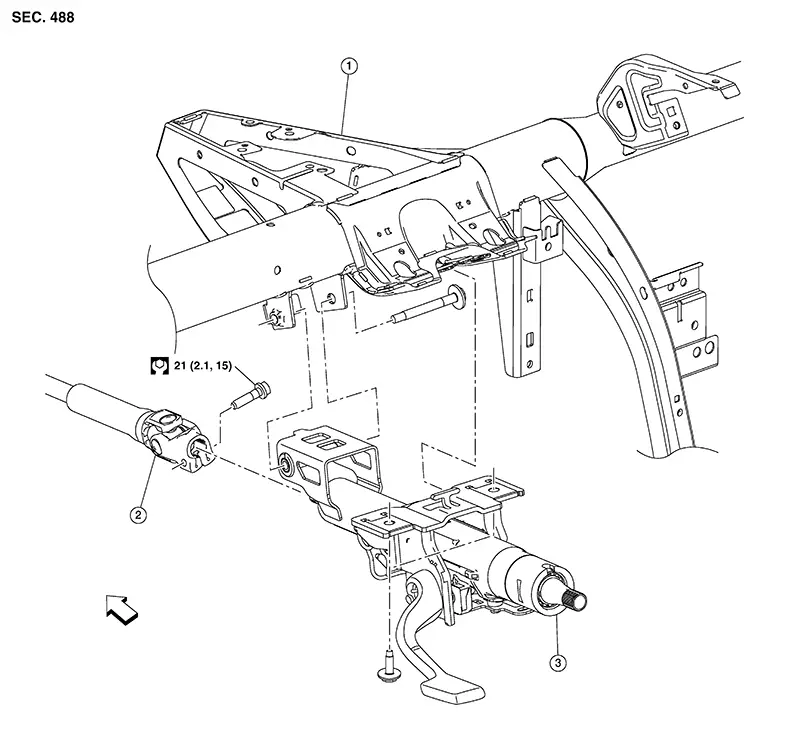

Exploded View

1.

Steering member

2.

Lower joint

3.

Steering column

Front


Steering Column
...

Removal and Installation
Removal and Installation REMOVAL CAUTION: Do not cause impact to steering column during removal and installation. Do not move steering gear d ...
