Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|

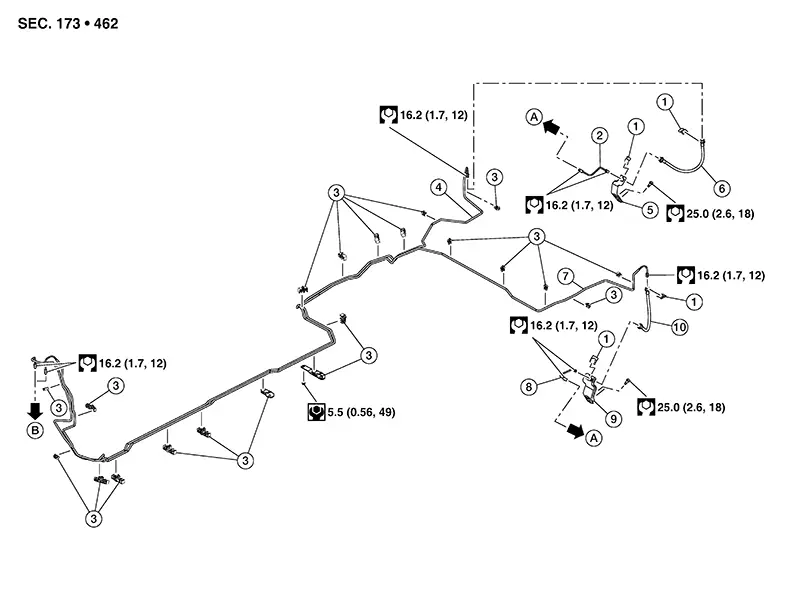

1. |
Lock plate |
2. |
Brake tube (RH) to wheel cylinder (RH) |
3. |
Clamp |
|
4. |
Brake tube to rear (RH) |
5. |
Brake hose bracket (RH) |
6. |
Brake hose (RH) |
|
7. |
Brake tube to rear (LH) |
8. |
Brake tube (LH) to wheel cylinder (LH) |
9. |
Brake hose bracket (LH) |
|
10. |
Brake hose (LH) |
A. |
To wheel cylinder. Refer to Exploded View. |
B. |
To ABS actuator and electric unit (control unit). Refer to Exploded View. |
|

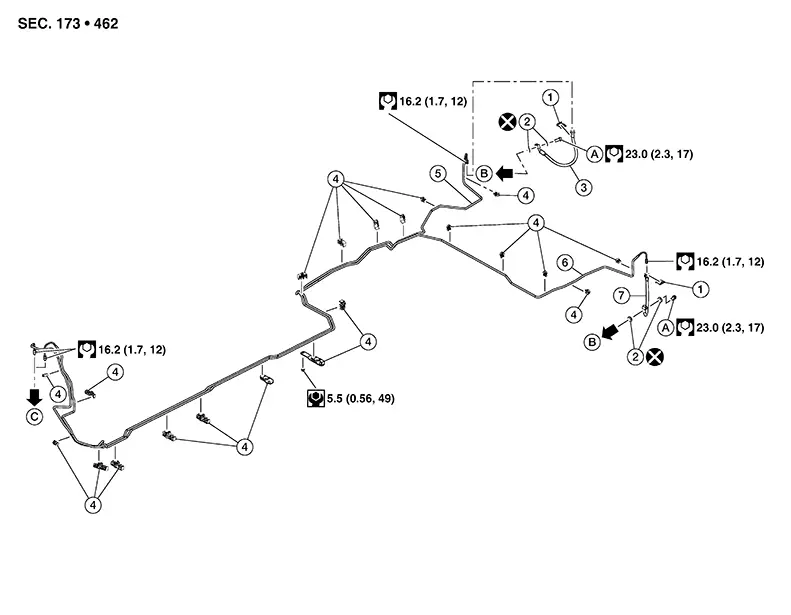

1. |
Lock plate |
2. |
Copper sealing washers |
3. |
Brake hose (RH) |
|
4. |
Clamp |
5. |
Brake tube to rear (RH) |
6. |
Brake tube to rear (LH) |
|
7. |
Brake hose (LH) |
A. |
Union bolt |
B. |
To rear brake caliper assembly. Refer to Exploded View. |
|
C. |
To ABS actuator and electric unit (control unit). Refer to Exploded View. |
Removal and Installation
Removal and Installation
DRUM BRAKES
CAUTION:
All hoses and piping (tubes) must be free from
excessive bending, twisting and pulling.
Do not ...
