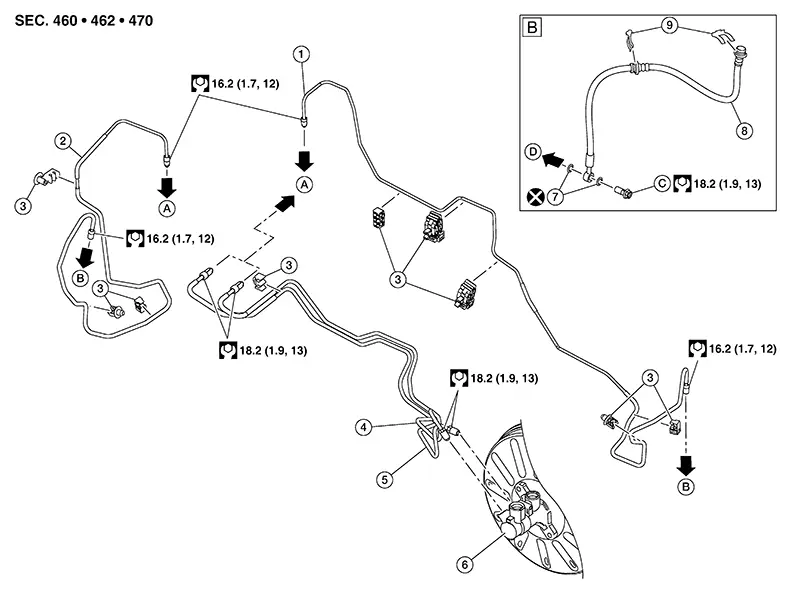

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Brake tube to front (RH) |
2. |
Brake tube to front (LH) |
3. |
Clamp |
|
4. |
Master cylinder secondary to ABS actuator brake tube |
5. |
Master cylinder primary to ABS actuator brake tube |
6. |
Master cylinder |
|
7. |
Copper sealing washer |
8. |
Brake hose |
9. |
Lock plate |
|
A. |
To ABS actuator and electric unit (control unit). Refer to Exploded View. |
B. |
To front brake hose |
C. |
Union bolt |
|
D. |
To front brake caliper assembly. Refer to Exploded View. |
Removal and Installation
Removal and Installation
CAUTION:
All hoses and piping (tubes) must be free from
excessive bending, twisting, and pulling.
Make sure there is n ...
