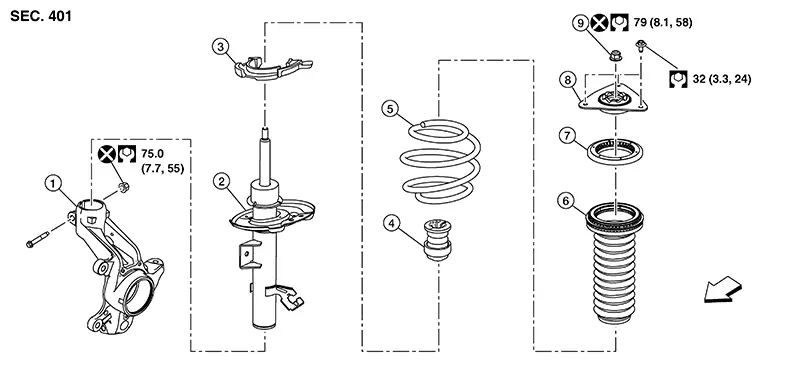

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Steering knuckle |
2. |
Strut |
3. |
Lower rubber seat |
|
4. |
Bound bumper |
5. |
Coil spring |
6. |
Dust cover |
|
7. |
Mounting bearing |
8. |
Mounting insulator |
9. |
Piston rod lock nut |
|
|
Front |
Removal and Installation
Removal and Installation
REMOVAL
Remove the
wheel and tire using power tool. Refer to Exploded View.
Remove the
lock plate from the front coil spring and strut and reposition the
...
