Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

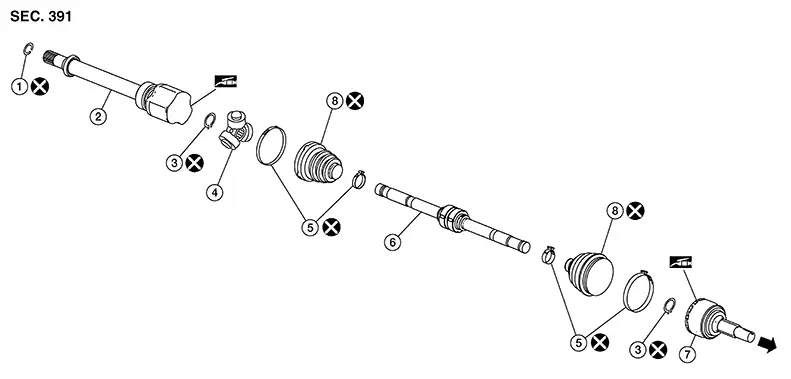

LH
|
1. |
Circular clip |
2. |
Slide joint housing |
3. |
Snap ring |
|
4. |
Spider assembly |
5. |
Boot band |
6. |
Shaft |
|
7. |
Joint sub-assembly |
8. |
Boot |
|
Wheel side |

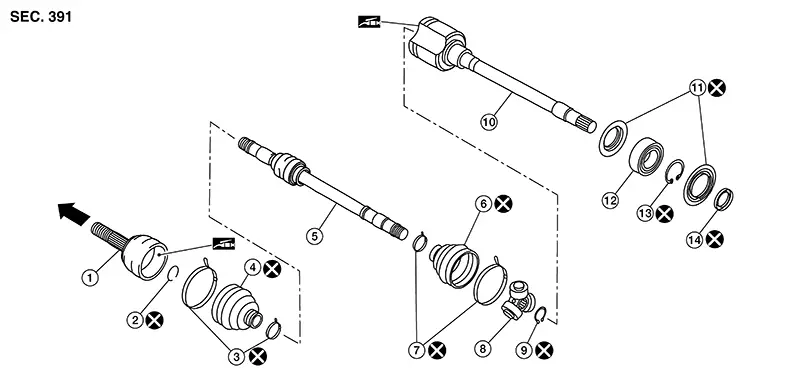

RH
|
1. |
Joint sub-assembly |
2. |
Circular clip |
3. |
Boot band |
|
4. |
Boot |
5. |
Shaft |
6. |
Boot |
|
7. |
Boot band |
8. |
Spider assembly |
9. |
Snap ring |
|
10. |
Slide joint housing |
11. |
Dust shield |
12. |
Support bearing |
|
13. |
Snap ring |
14. |
Dust shield |
|
Wheel side |
Wheel Side
Removal and Installation
Removal and
Installation
REMOVAL
Remove disc brake rotor. Refer to Removal and Installation.
CAUTION:
Do not depress the brake pedal while the brake
...
