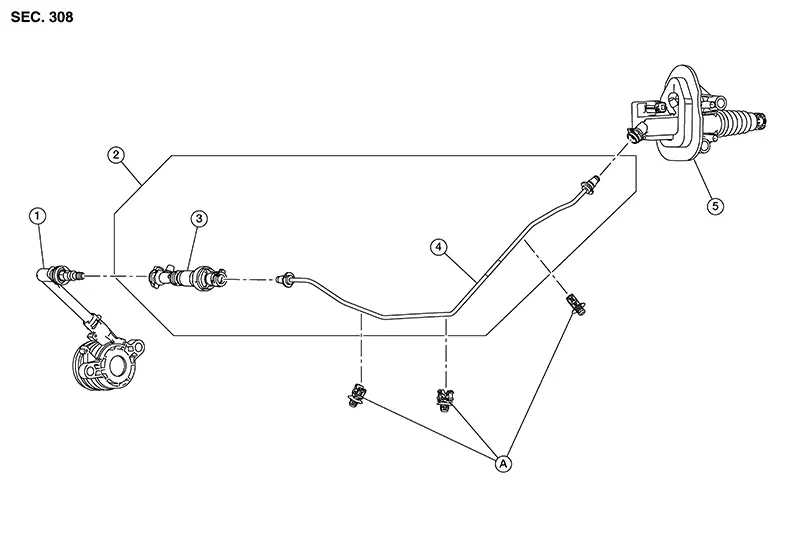

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
CSC (Concentric Slave Cylinder) |
2. |
Clutch tube and clutch damper assembly |
3 |
Clutch damper |
|
4. |
Clutch tube |
5. |
Clutch master cylinder |
A. |
Clip |
Clutch Piping
...
Hydraulic Layout
Hydraulic Layout
1.
Clutch tube
2.
...
