Nissan Sentra B18 (2020-2025) Service Manual: Evaporator
Removal and Installation
REMOVAL
Remove the blower unit. Refer to Removal and Installation.
Remove heater core. Refer to Removal and Installation.
Remove

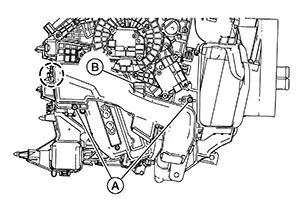

screws (A).
|
|
: Pawl |
Using a suitable tool, release pawl and remove foot duct RH.
Remove air mix door motor RH. Refer to Removal and Installation — Air Mix Door Motor RH (Automatic Air Conditioner) or Removal and Installation (Manual Air Conditioner).
Disconnect intake sensor.
Disconnect air mix door motor LH (if equipped). Refer to Exploded View.
Remove
screws (A) from evaporator lower cover.
Remove
screws (A) from evaporator lower cover.
Using a
suitable tool, release pawls from evaporator lower cover.
|
|
: Pawl |
Using a
suitable tool, release pawls and remove evaporator lower
cover.
|
|
: Pawl |
Remove evaporator.
INSTALLATION
Installation is in the reverse order of removal.
Heater Core
Removal and Installation
Removal and Installation
REMOVAL
Remove the
heating and cooling unit assembly. Refer to Removal and Installation.
Remove
screws (A).
...
Expansion Valve
Removal and Installation
Removal and Installation
The
expansion valve is an integral part of the evaporator.
If
replacement of the expansion valve is necessary, replace the
ev ...
