Nissan Sentra B18 (2020-2025) Owner's Manual: Engine compartment check locations

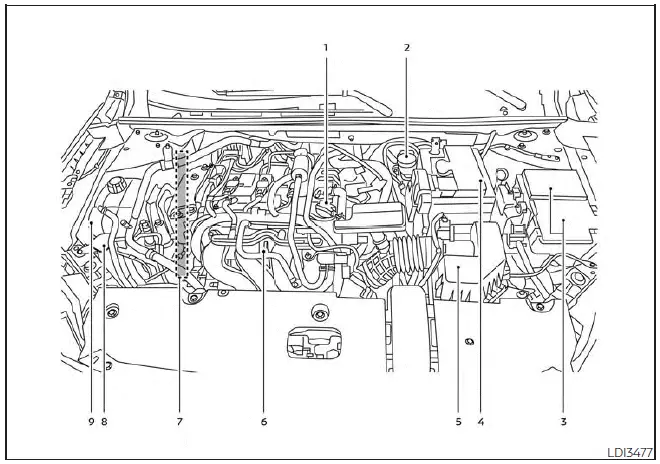

Nissan Sentra engine compartment check locations

2.0L 4 cylinder (MR20DD engine model)

  1. Engine oil filler cap
  2. Brake and clutch (if so equipped) fluid reservoir
  3. Fuse and relay box
  4. Battery
  5. Air cleaner
  6. Engine oil dipstick
  7. Drive belt location
  8. Windshield-washer fluid reservoir
  9. Engine coolant reservoir

NOTE:

Your Nissan Sentra may not be equipped with an engine cover, depending on model and production specification.
