Nissan Sentra B18 (2020-2025) Service Manual: Door Motor

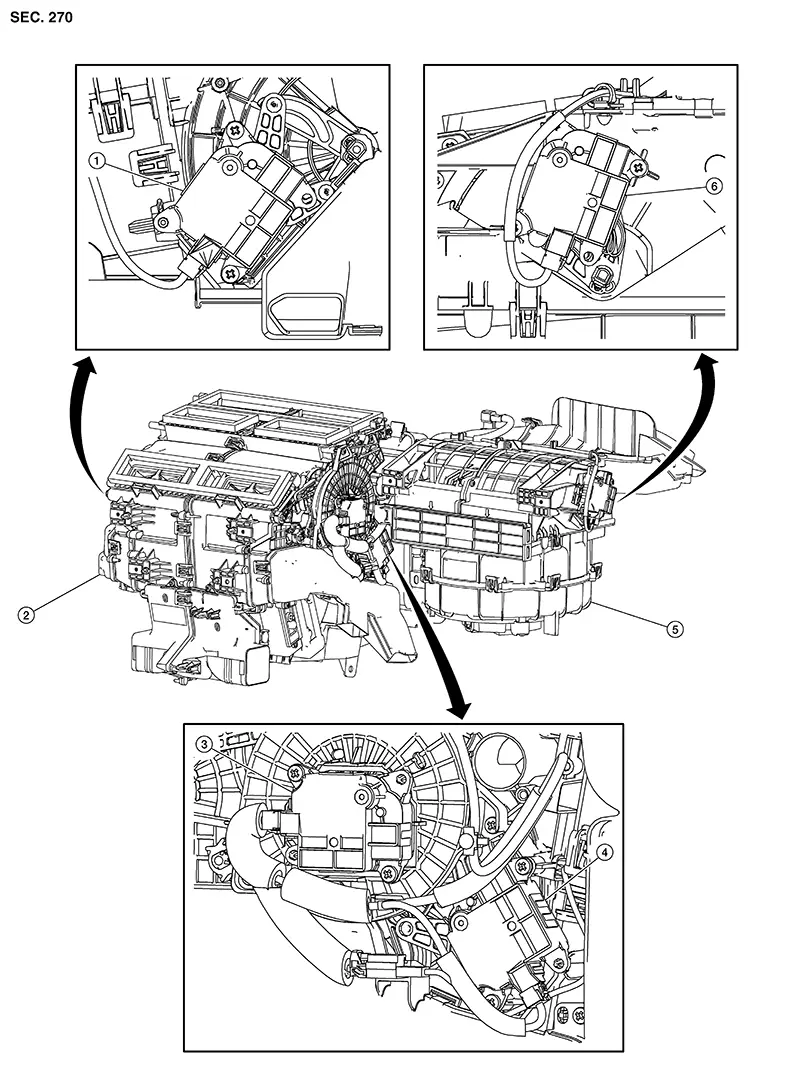

Exploded View
|
1. |
Air mix door motor LH |
2. |
Heating and cooling unit assembly |
3. |
Mode door motor |
|
4. |
Air mix door motor RH |
5. |
Blower motor unit |
6. |
Intake door motor |
Intake Door Motor
Removal and Installation
REMOVAL
Remove heating and cooling unit assembly. Refer to Removal and Installation.
Disconnect harness connector from intake door motor.
Remove intake door motor screws and the intake door motor.
INSTALLATION
Installation is in the reverse order of removal.
Mode Door Motor
Removal and Installation
REMOVAL
Remove knee air bag module RH. Refer to Removal and Installation.
Disconnect harness connector from mode door motor.
Remove mode door motor screws and remove mode door motor.
INSTALLATION
Installation is in the reverse order of removal.
Air Mix Door Motor
Removal and Installation - Air Mix Door Motor Rh
REMOVAL
Remove knee air bag module RH. Refer to Removal and Installation.
Disconnect the harness connector from air mix door motor RH.
Remove air mix door motor RH screws and remove air mix door motor RH.
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation - Air Mix Door Motor Lh
REMOVAL
Remove left knee air bag module. Refer to Removal and Installation.
Disconnect harness connector from air mix door motor LH.
Remove air mix door motor LH screws and remove air mix door motor LH.
INSTALLATION
Installation is in the reverse order of removal.
Refrigerant Pressure Sensor
Removal and Installation
Removal and Installation
The
refrigerant pressure sensor is an integral part of the high
pressure pipe.
If
replacement of the refrigerant pressure sen ...
