Nissan Sentra B18 (2020-2025) Service Manual: Door Mirror Cover
Removal and Installation
REMOVAL
Note:
With side turn signal lamp shown, without is similar.
Remove glass mirror. Refer to Removal and Installation.

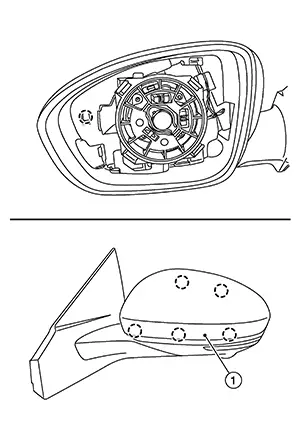

Using a
suitable tool, release pawls and remove the door mirror cover (1)
from the door mirror assembly.
:
Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installation, visually check that pawls are securely engaged.
Glass Mirror
Removal and Installation
Removal and Installation
REMOVAL
Using a
suitable tool, release pawls.
:
Pawl
Disconnect
harness connectors (if equipped) and remove glass mirror
...
Door Mirror Actuator
Removal and Installation
Removal and Installation
REMOVAL
CAUTION:
Be careful not to scratch or damage the door
mirror body when removing.
Remove
glass mirror. Refer t ...
