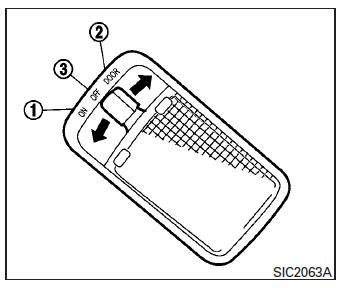

The interior light has a three-position switch and operates regardless of ignition switch position.
When the switch is in the ON position 1 , the interior lights illuminate, regardless of door position.
The lights will go off after a period of time unless the ignition switch is placed in the ACC or ON position.
When the switch is in the DOOR position 2 , the interior lights will stay on for a period of time when:
The lights will turn off while the timer is activated when:
When the switch is in the OFF position 3 , the interior lights do not illuminate, regardless of door position.
The lights will turn off automatically after a period of time while doors are open to prevent the battery from becoming discharged.
CAUTION
Do not use for extended periods of time with the engine stopped. This could result in a discharged battery.
Starter motor drive control
STARTER MOTOR DRIVE CONTROL : System Description
SYSTEN DIAGRAM
*1: CVT models
*2: M/T models
INPUT/OUTPUT SIGNAL CHART
Sensor
Input signal to ECM
ECM function
Actuator
Crankshaft position sensor (POS)
Engine speed
Piston position
Starter ...
Rear disc brake
Exploded View
Sliding pin bolt
Bushing
Cap
Bleeder valve
Cylinder body
Piston seal
Piston
Piston boot
Sliding pin boot
Torque member
Apply rubber grease
Apply brake fluid
Disassembly and Assembly
DISASSEMBLY
Place a wooden block as shown, and blow air from union ...
Cowl top
Exploded view
Cowl top seal
Cowl top grille cap
Cowl top cover
Cowl top extension
Cowl top extension insulator
Clip
EPT seal [t: 3.0 mm (0.12 in)
Cowl top cover cap
EPT seal [t: 5.0 mm (0.20 in)]
Pawl
Clip
Front
Removal and installation
COWL TOP COVER
Removal
Rem ...
