Nissan Sentra Service Manual: Symptom diagnosis
CVT CONTROL SYSTEM

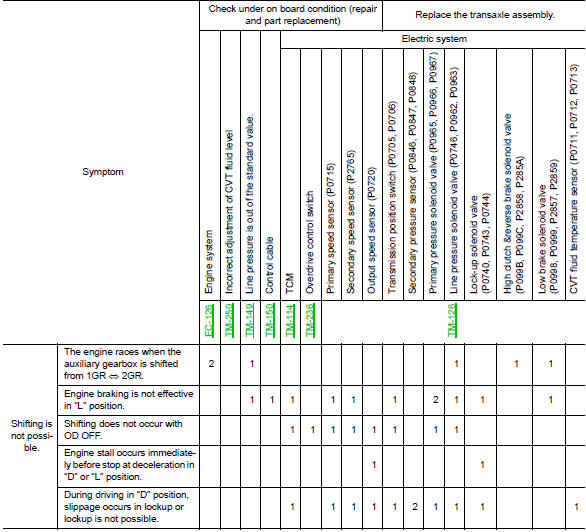

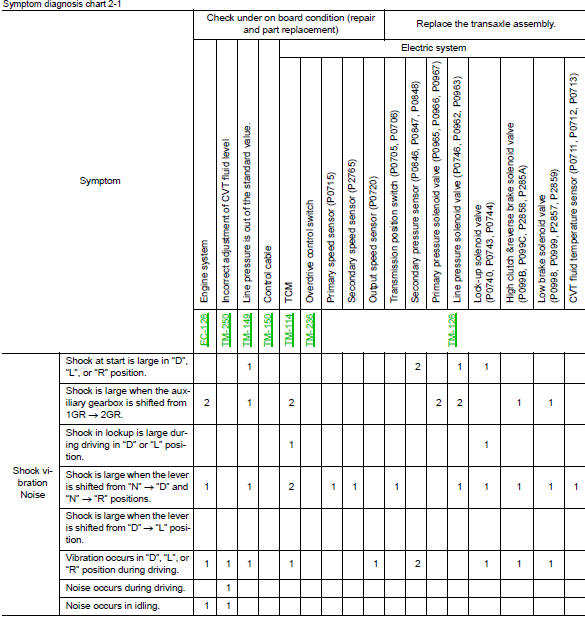

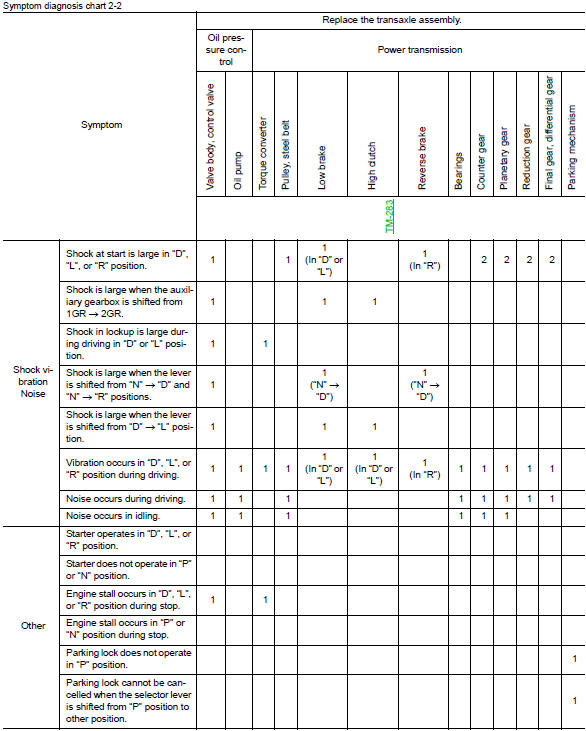

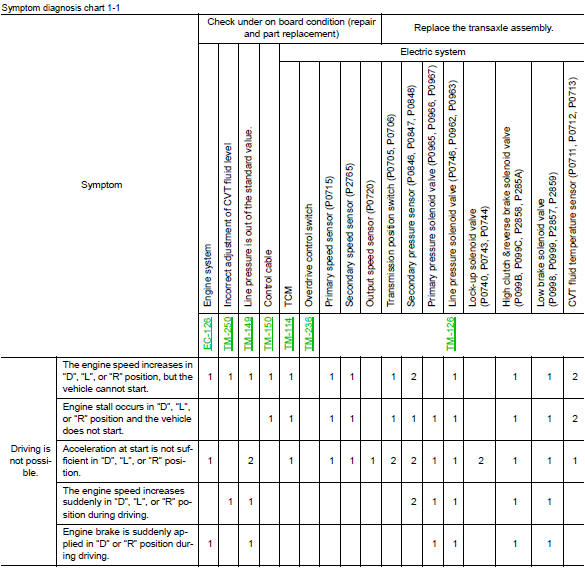

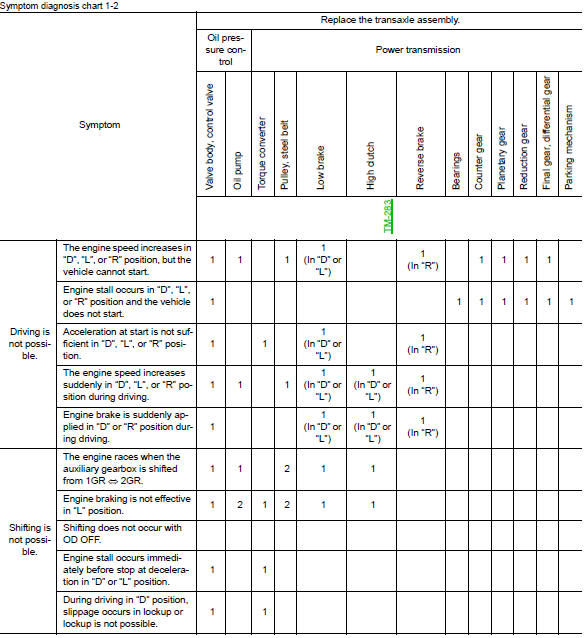

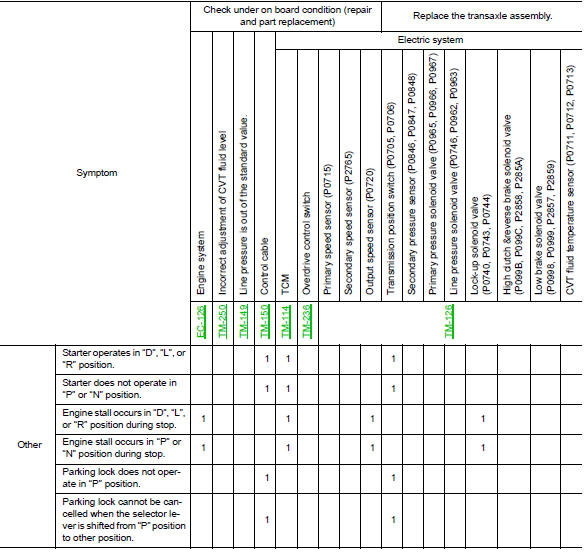

Symptom Table
The diagnosis item number indicates the order of check. Start checking in the order from 1.
Shift lock system
Component Function Check
1.CHECK SHIFT LOCK OPERATION (PART 1)
Turn ignition switch ON.
Shift the selector lever to park “P” position.
Attempt to shift the selector lever to any oth ...
Periodic maintenance
CVT FLUID
Inspection
FLUID LEAKAGE
Check transaxle surrounding area (oil seal and plug etc.) for fluid
leakage.
If anything is found, repair or replace damaged parts and adjust
CVT fluid ...
