Nissan Sentra B18 (2020-2025) Service Manual: Descriptions for Clips
Replace any clips which are damaged during removal or installation.

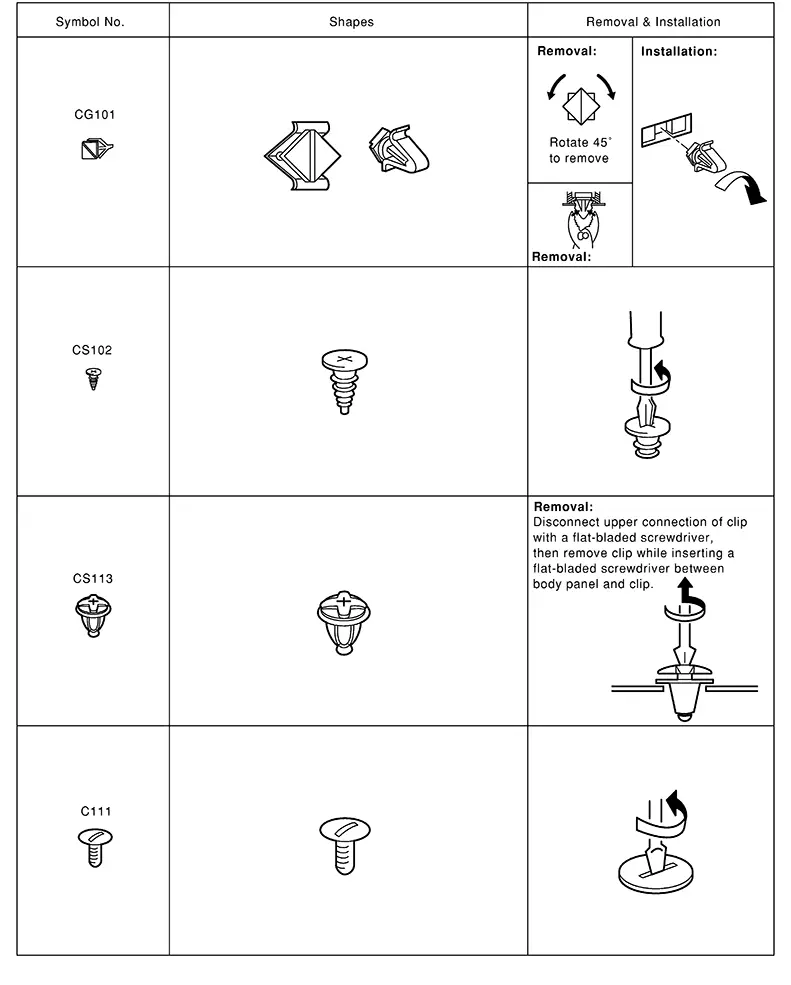

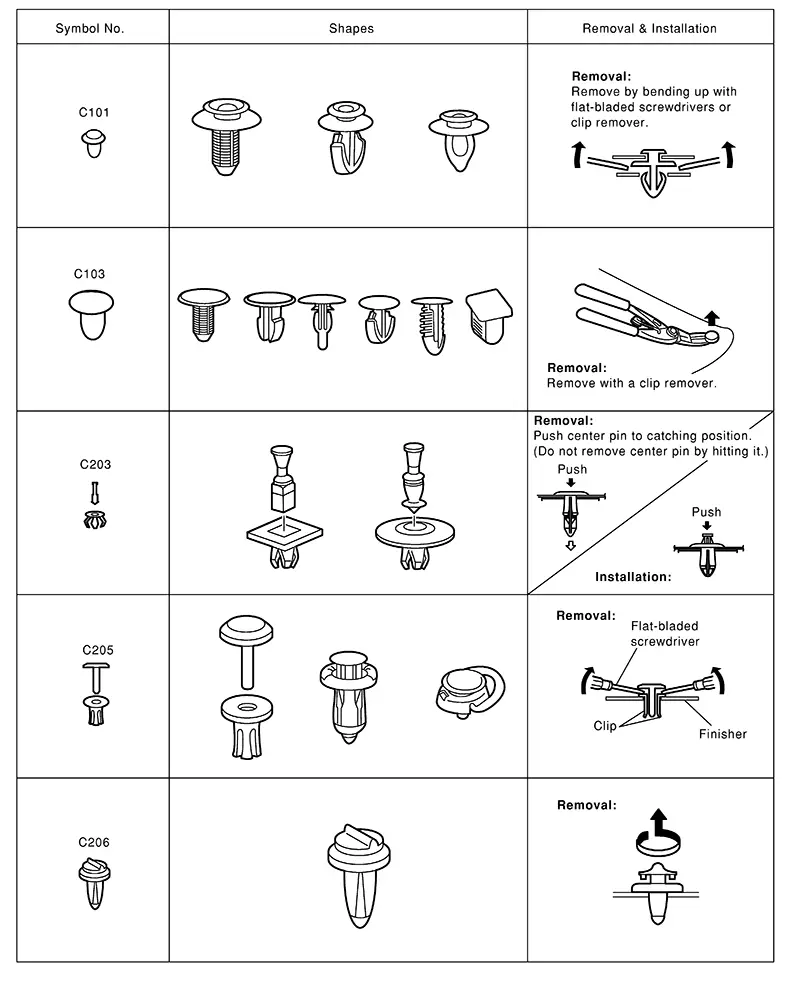

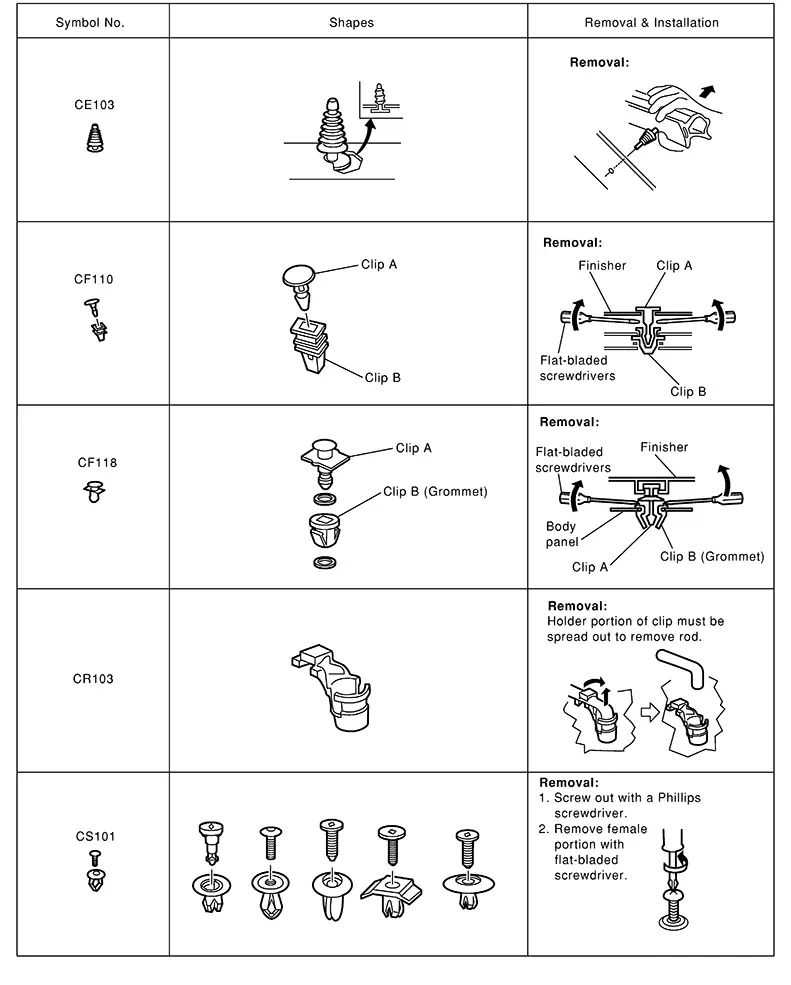

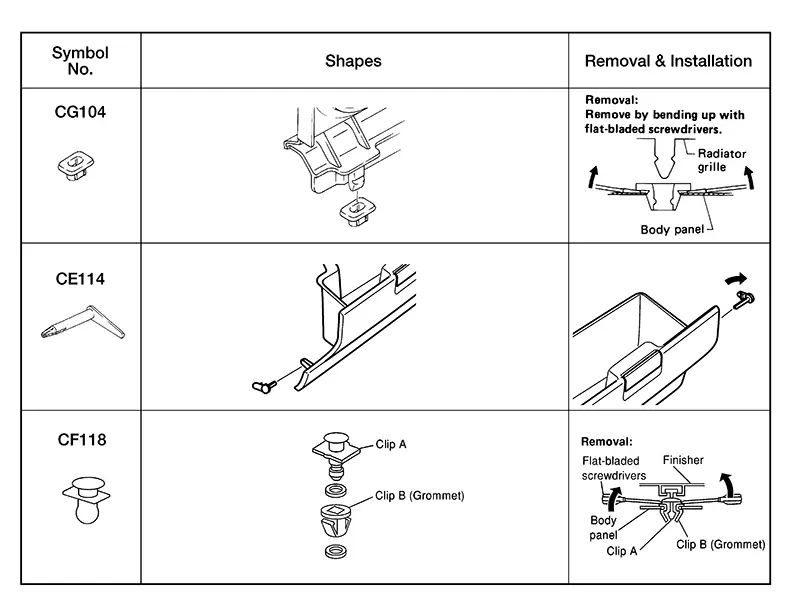

Clip List
...
