Nissan Sentra B18 (2020-2025) Service Manual: Description
Rear
|
MODE/DEF position indication |

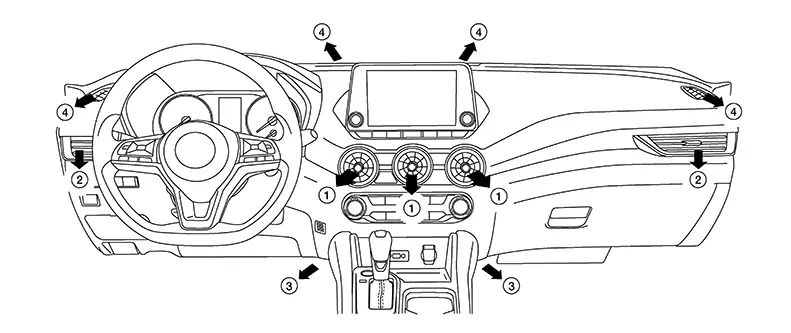

AIR OUTLET |
||||
|---|---|---|---|---|---|
|
Ventilator |
Foot |
Defroster (4) |
|||
|
Center (1) |
Side (2) |
Front (3) |

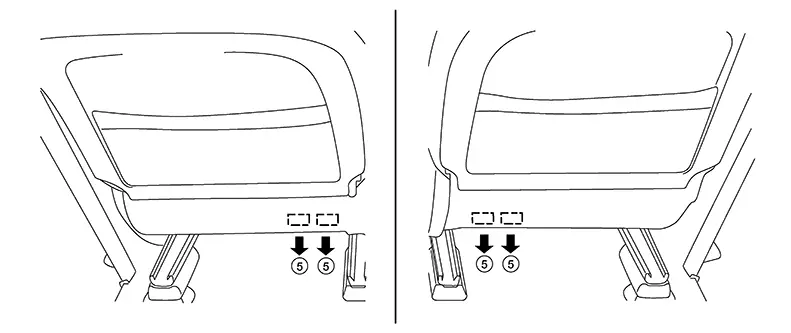

Rear (5) |
||
|
|
× |
× |
— |
— |
— |
|
|
× |
× |
× |
× |
— |
|
|
— |
— |
× |
× |
— |
|
|
— |
— |
× |
× |
× |
|
|
— |
— |
— |
— |
× |
