Nissan Sentra B18 (2020-2025) Service Manual: Component Parts

Intelligent Around View Monitor System

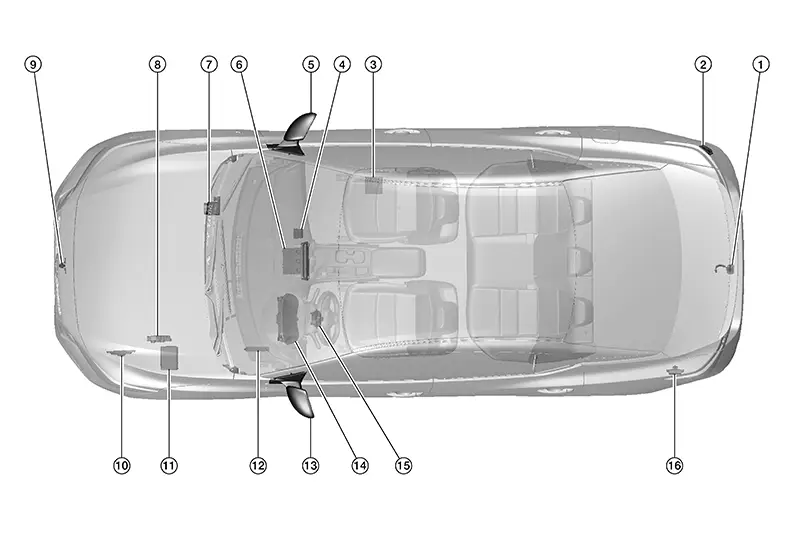

Component Parts Location

Component Parts Location

No.

Component

Function

1.

Rear camera

Refer to Rear Camera .

2.

Side radar RH

Provides around view monitor control unit with right and left alert signal via CAN communication.

Refer to Component Parts Location for detailed component location.

3.

Around view monitor control unit

Refer to Around View Monitor Control Unit.

4.

ADAS (Advanced Driver Assistance Systems) control unit

Provides around view monitor control unit with alert 1 and 2 signal via CAN communication.

Refer to Component Parts Location for detailed component location.

5.

Door mirror RH (side camera)

Refer to Side Cameras.

6.

AV control unit

Refer to AV Control Unit.

7.

ABS (Anti-lock Braking System) actuator and electric unit (control unit)

Provides around view monitor control unit with Nissan Sentra vehicle speed signal via CAN communication.

Refer to Component Parts Location for detailed component location.

8.

ECM (Engine Control Module)

Provides around view monitor control unit with pedal failure signal via CAN communication.

Refer to Component Parts Location for detailed component location.

9.

Front camera

Refer to Front Camera .

10.

TCM (Transmission Control Module) (with CVT models)

Provides around view monitor control unit with transmission range sensor signal via CAN communication.

Refer to Component Parts Location for detailed component location.

11.

IPDM E/R (Intelligent Power Distribution Module Engine Room)

Provides around view monitor control unit with ignition supply signal via CAN communication.

Refer to Component Parts Location for detailed component location.

12.

BCM (Body Control Module)

Provides around view monitor control unit with door switch state signal via CAN communication.

13.

Door mirror LH (side camera)

Refer to Side Cameras.

14.

Combination meter

Provides around view monitor control unit with parking brake signal via CAN communication.

Refer to Component Parts Location for detailed component location.

15.

Steering angle sensor

Refer to Steering Angle Sensor.

16.

Sonar control unit

Provides around view monitor control unit with display request signal via CAN communication.

Refer to Component Parts Location for detailed component location.

Av Control Unit

AV Control Unit

  • A 8-inch color display with multi-touch control, an AM/FM/HD electronic tuner radio with RDS, audio amplifier and camera controller are integrated into the AV control unit.

  • The 8-inch color display is a high resolution monitor that includes touch panel functions.

  • Music files stored in iPod®*/USB memory can be played using the separate USB interface.

  • Music files stored in an external audio device can be played using the separate AUX input jack.

*: iPod® is a registered trademark of Apple, Inc. All rights reserved.

Around View Monitor Control Unit

Around View Monitor Control Unit

  • The around view monitor control unit is installed under the right front seat.

  • Necessary signals are transmitted/received to/from control unit via CAN communication.

  • Camera image signals received from each camera are converted/synthesized in the around view monitor control unit and transmitted to the AV control unit.

  • Nissan Sentra Vehicle width guide lines, predicted course line, vehicle front guiding line and vehicle side line, tire icon, and Nissan Sentra vehicle icon are rendered with the around view monitor control unit and combined with camera image.

Front Camera

Front Camera

  • The front camera is installed in the front grille.

  • Power is supplied from the around view monitor control unit.

Side Cameras

Side Cameras

  • The side cameras are installed in the door mirrors.

  • Power is supplied from the around view monitor control unit.

Rear Camera

Rear Camera

  • The rear camera is installed next to the rear licence plate lamp.

  • Power for the camera is supplied from the around view monitor control unit.

Steering Angle Sensor

Steering Angle Sensor

  • Steering angle sensor is installed to the spiral cable.

  • Steering angle sensor sends the steering signal necessary for predictive course line to the around view monitor control unit via CAN communication.

    System
    System Description System Description SYSTEM DIAGRAM Around View Monitor Control Unit Input Signal (CAN Communication) Transmit unit Signal name ABS actuator and electric unit (...
