Nissan Sentra B18 (2020-2025) Service Manual: Combination Meter

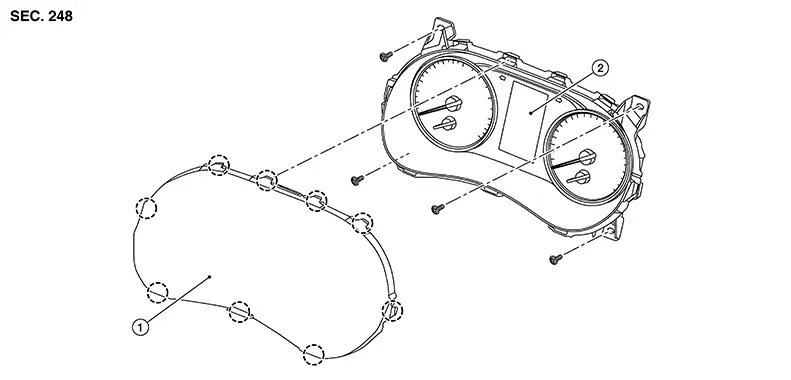

Exploded View
|
1. |
Front cover |
2. |
Combination meter |
|
Pawl |
Removal and Installation
REMOVAL
CAUTION:
Be sure to perform the "ADDITIONAL SERVICE WHEN REPLACING COMBINATION METER". Refer to Work Procedure.
Note:
Do not swap combination meter modules between Nissan Sentra vehicles for any reason.
Remove cluster lid A. Refer to Removal and Installation.
Remove the
screws (A) from the combination meter (1).
Disconnect harness connector from the combination meter (1) and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Be sure to perform the "ADDITIONAL SERVICE WHEN REPLACING COMBINATION METER". Refer to Work Procedure.
Note:
Do not swap combination meter modules between Nissan Sentra vehicles for any reason.
