Nissan Sentra B18 (2020-2025) Service Manual: Body Alignment

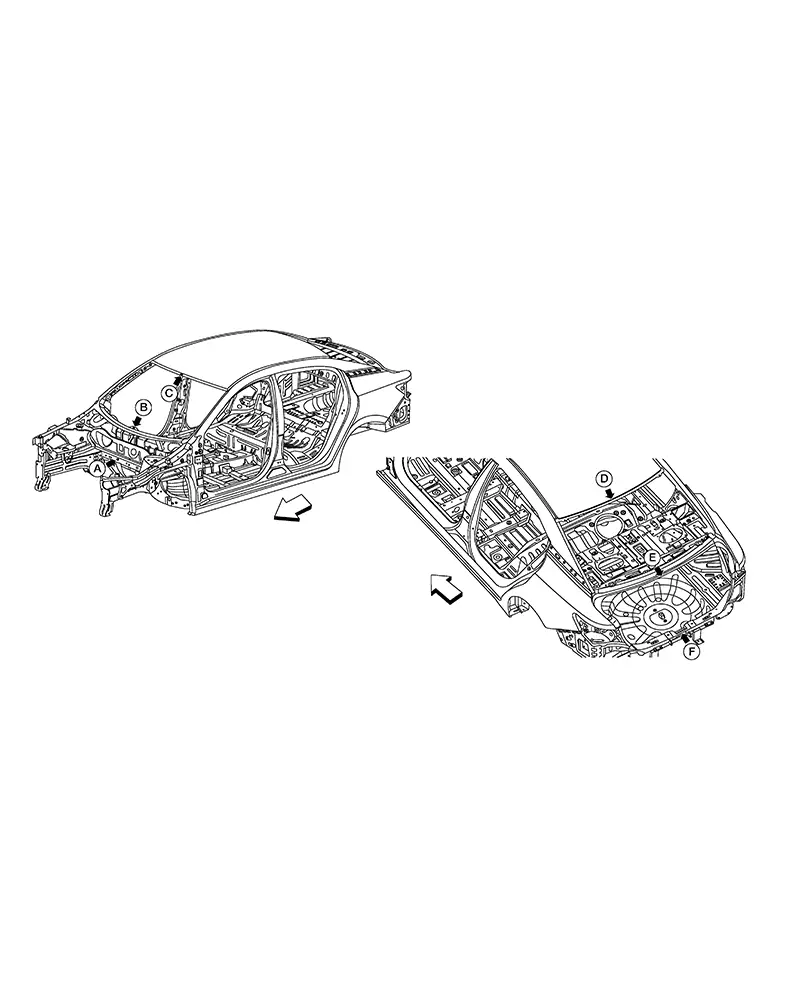

Body Center Marks
Factory marks exist on certain parts of the body to indicate the Nissan Sentra vehicle center. When repairing the vehicle frame (members, pillars, etc.) damaged in an accident the most accurate and effective repair will be achieved by using these marks together with body alignment specifications.
|
|
Front |
||||
|
Points |
Portion |
Marks |
|---|---|---|
|
A. |
Center cowl |
Hole |
|
B. |
Center cowl top |
Notch |
|
C. |
Front roof |
Embossment |
|
D. |
Rear roof |
Embossment |
|
E. |
Rear shelf panel |
Positioning mark |
| F. | Rear end panel | Notch |
Description
-
All dimensions indicated in the figures are actual.
-
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
-
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
-
Measurements should be taken at the center of the mounting holes.
-
An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.
-

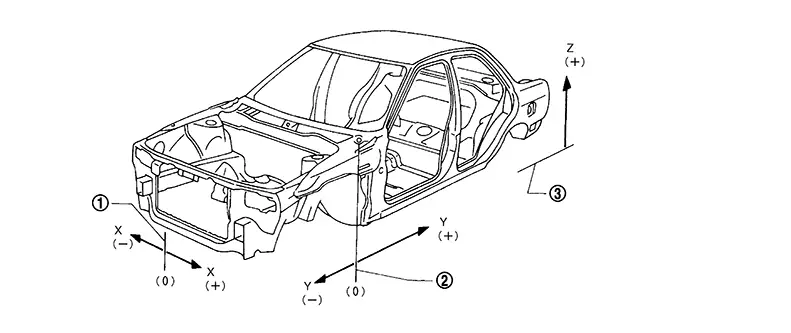

The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
-
″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]
|
1. |
Nissan Sentra Vehicle center |
2. |
Front axle center |
3. |
Imaginary base line |

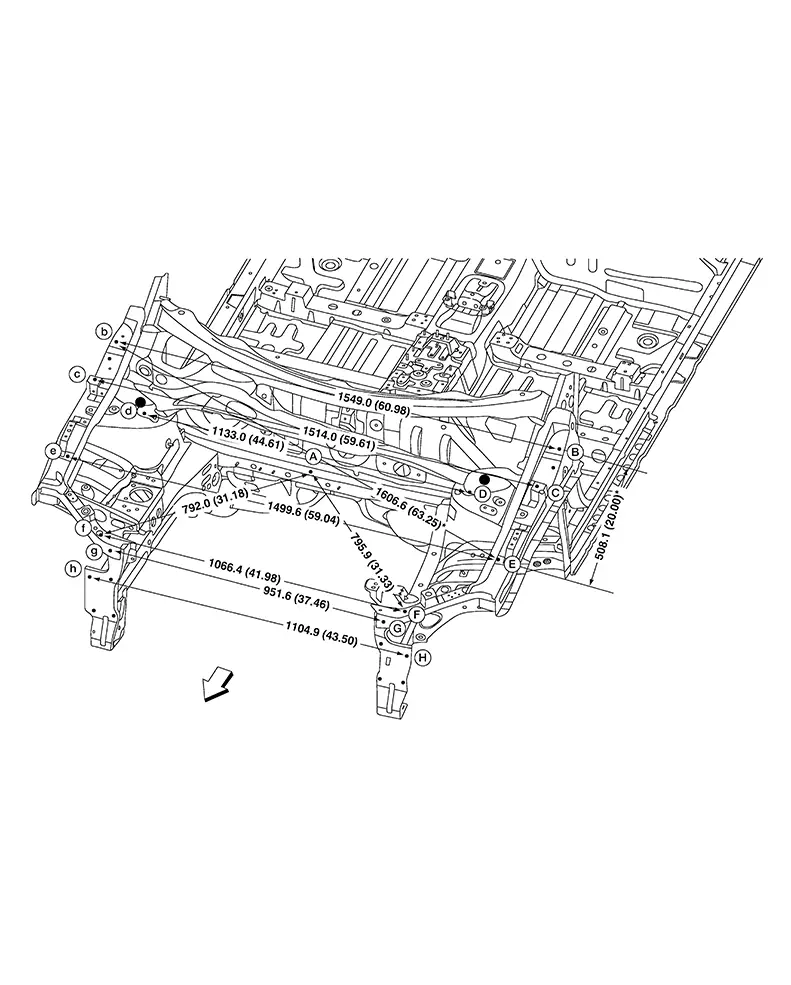

Engine Compartment
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the RH and LH sides of the Nissan Sentra vehicle.
Unit: mm (in) |
|
Front |
||||

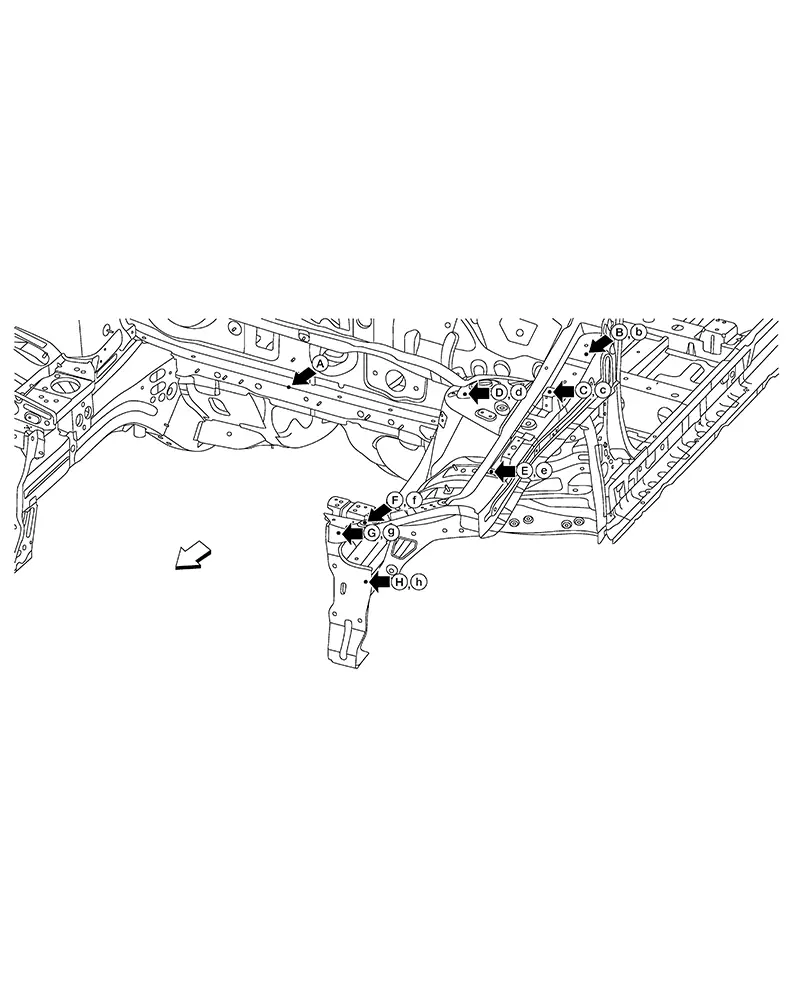

MEASUREMENT POINTS
|
|
Front |
|
Point |
Description |
|---|---|
|
A |
Hole position mark 9.8 x 8.0 (0.38 x 0.31) |
|
B, b |
Rear hood hinge hole 11.0 (0.43) |
|
C, c |
Front fender hole 7.0 (0.27) |
|
D, d |
Front suspension spring housing support 16.0 x 10.4 (0.63 x 0.40) |
|
E, e |
Hood locator hole 12.0 (0.47) |
|
F, f |
Location for combination lamp 12.0 (0.47) |
|
G, g |
Radiator support upper hole 11.9 (0.46) |
| H, h | Bumper reinforcement upper outer hole 14.0 (0.55) and 14.5 (0.57) |

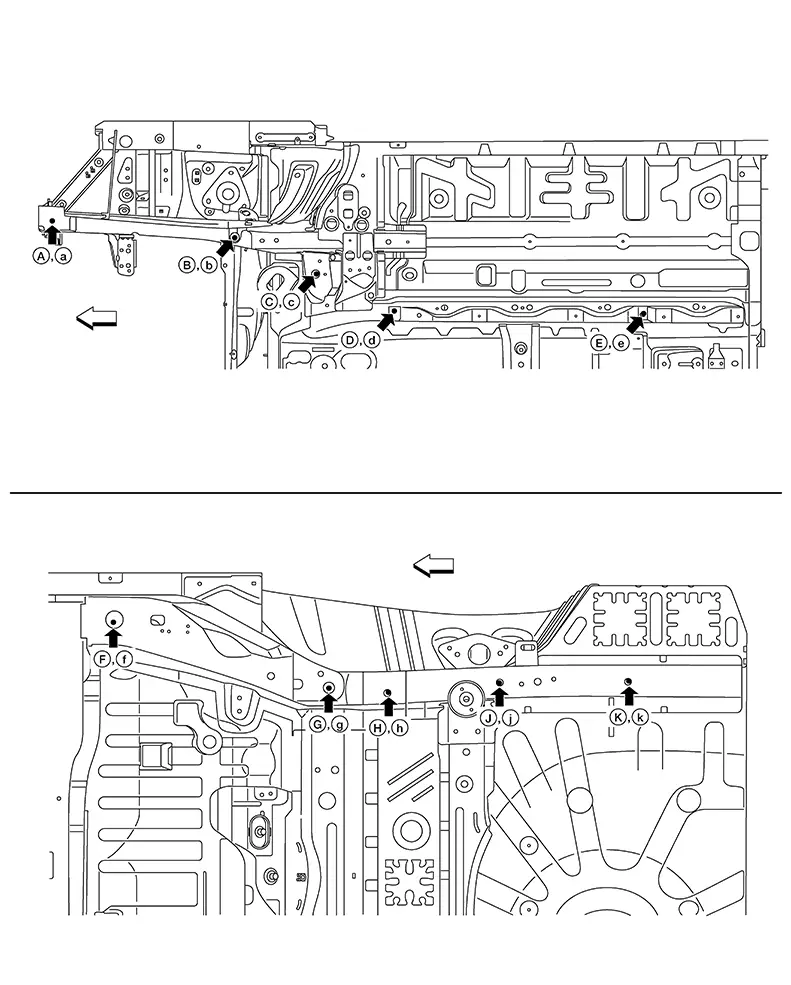

Underbody
MEASUREMENT

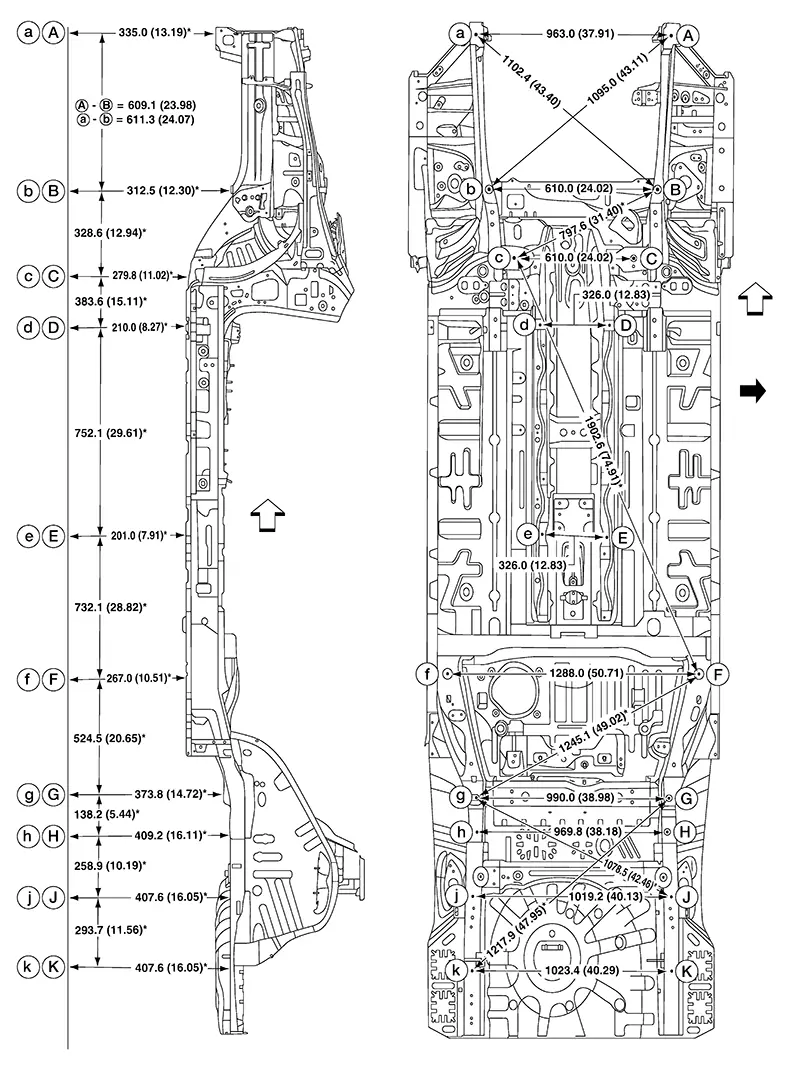

The following figure shows a bottom view and a side view of the vehicle.
Unit: mm (in). |
|
Front |
|
Left side of Nissan Sentra vehicle |
||
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH sides of the Nissan Sentra vehicle.
MEASUREMENT POINTS
|
|
|
Point |
Description |
|---|---|
|
A, a |
Front suspension hole 16.0 (0.63) |
|
B, b |
Front suspension hole 12.0 (0.47) |
|
C, c |
Front suspension oblong hole 31.0 x 26.5 (1.22 x 1.04) |
|
D, d |
Front locator hole 12.0 (0.47 |
|
E, e |
Locator oblong hole 16.0 x 12.0 (0.63 x 0.47) |
|
F, f |
Locator hole 16.0 (0.63) |
|
G, g |
Locator oblong hole 31.5 x 26.3 (1.24 x 1.03) |
| H, h | Locator oblong hole 18.0 x 16.0 (0.70 x 0.63) |
| J, j | Locator Hole 16.0 (0.63) |

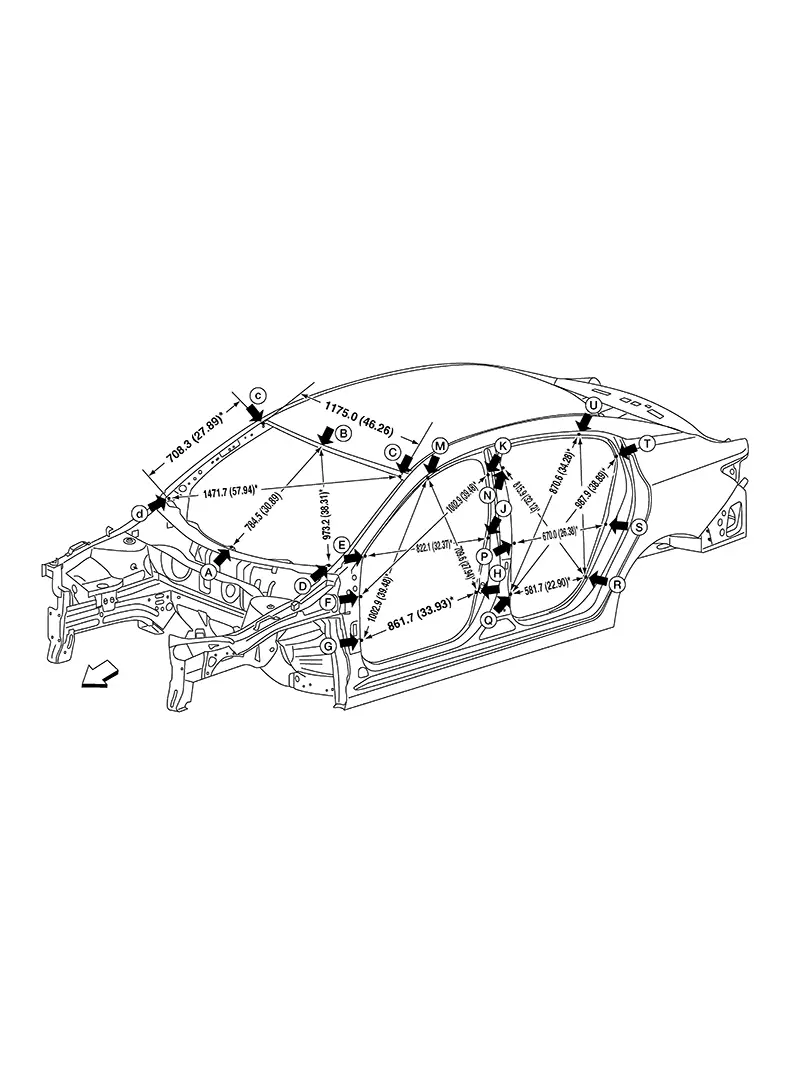

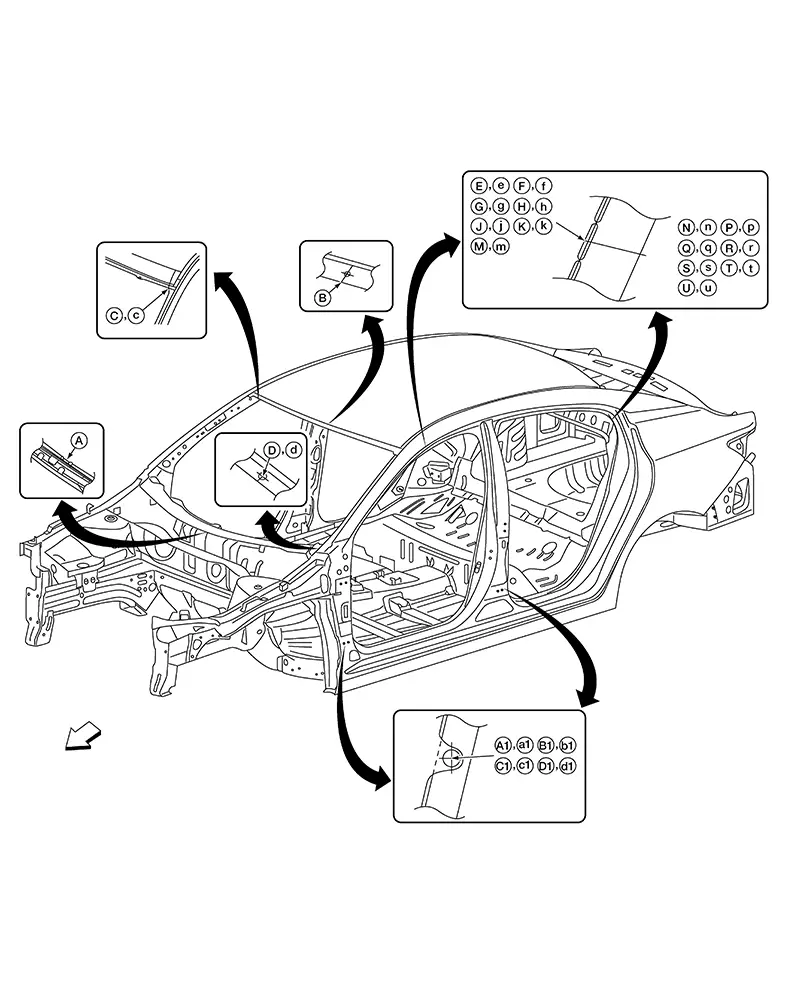

Passenger Compartment
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Sentra vehicle.
Unit:
mm (in) MEASUREMENT POINTS
|
|
Front |
|
Point |
Description |
|---|---|
|
A |
Cowl panel flange notch. |
|
B |
Edge of roof panel emboss mark. |
|
C, c |
Joggle of windshield opening. |
|
D, d |
Notch of windshield opening lower side. |
|
E, e |
Notch of front door pillar upper side. |
|
F, f |
Notch of front door font door pillar mid side. |
|
G, g |
Notch of front pillar front door lower side. |
| H, h | Notch of front door center pillar lower side. |
| J, j |
Notch of front door center pillar mid side. |
| K, k |
Notch of front door center pillar upper side. |
|
M, m |
Notch of rear door center pillar upper side. |
|
N, n |
Notch of rear door center pillar upper side. |
|
P, p |
Notch of rear door center pillar middle side. |
|
Q, q |
Notch of rear door opening lower side. |
|
R, r |
Notch of rear door opening lower side. |
|
S, S |
Notch of rear door opening middle side. |
|
T, t |
Notch of rear door opening upper side. |
|
U, u |
Notch of rear door opening top side. |
|

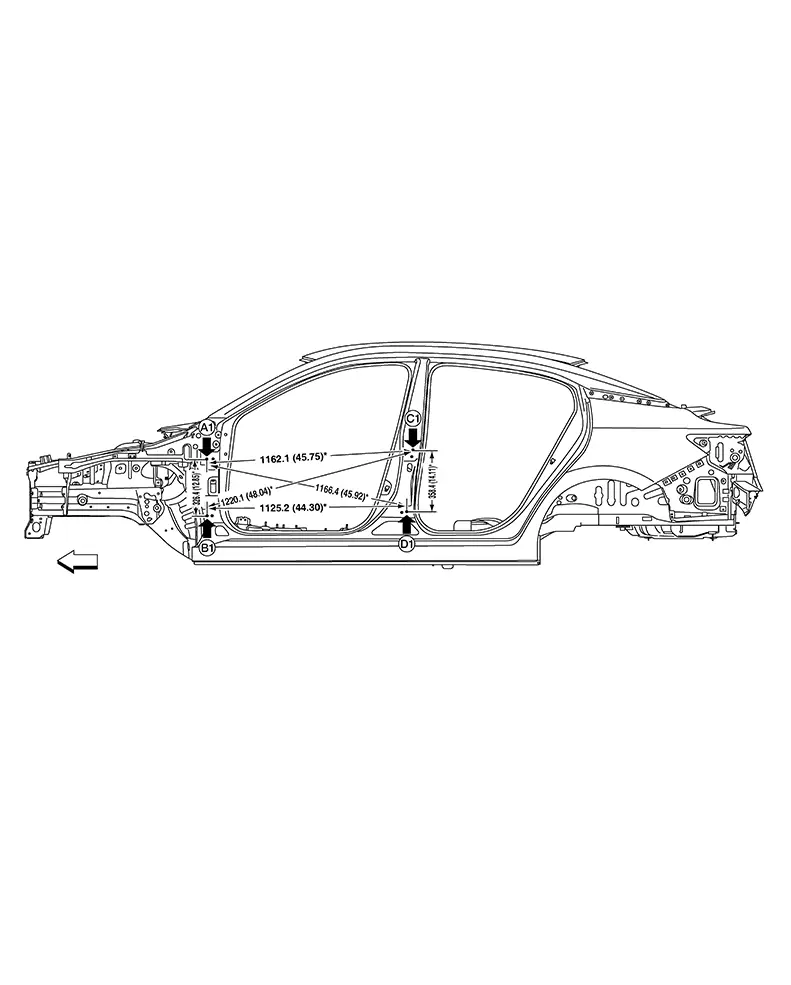

A1, a1 |
Front door upper hinge front hole 12.0 (0.47). |
|
B1, b1 |
Front door lower hinge front hole 12.0 (0.47). |
|
C1, c1 |
Rear door upper hinge upper hole 9.20 (0.36). |
|
D1, d1 |
Rear door lower hinge rear hole 12.0 (0.47). |

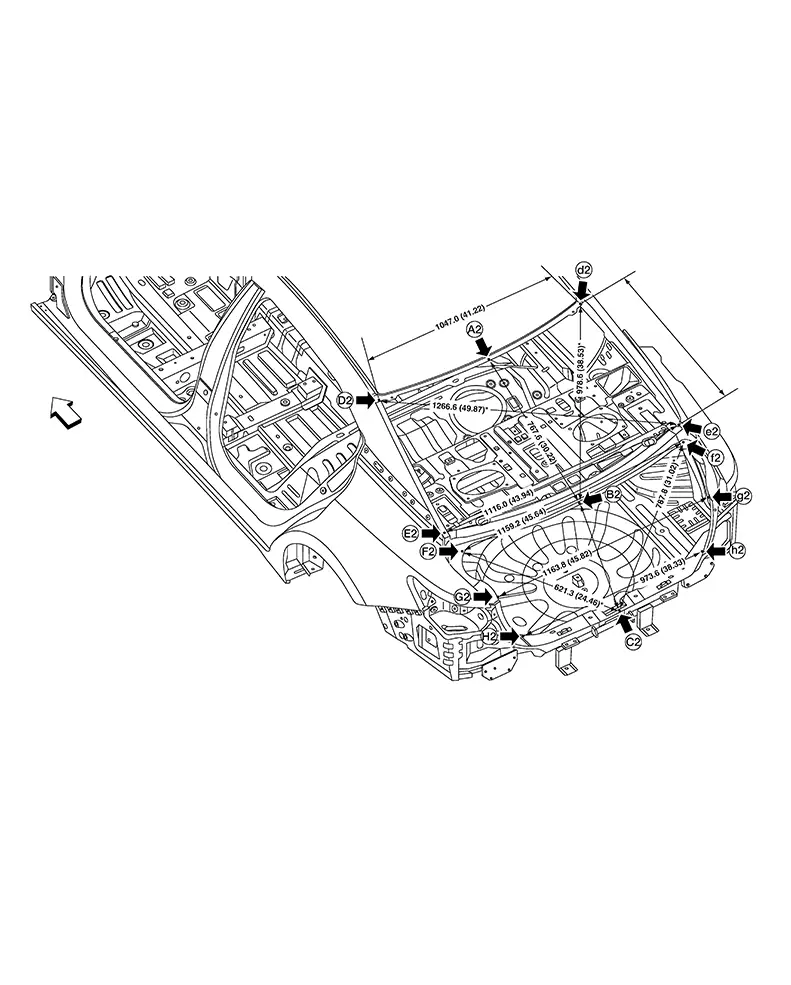

Rear Body
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Sentra vehicle.
Unit: mm (in) |
|
Front |
||||

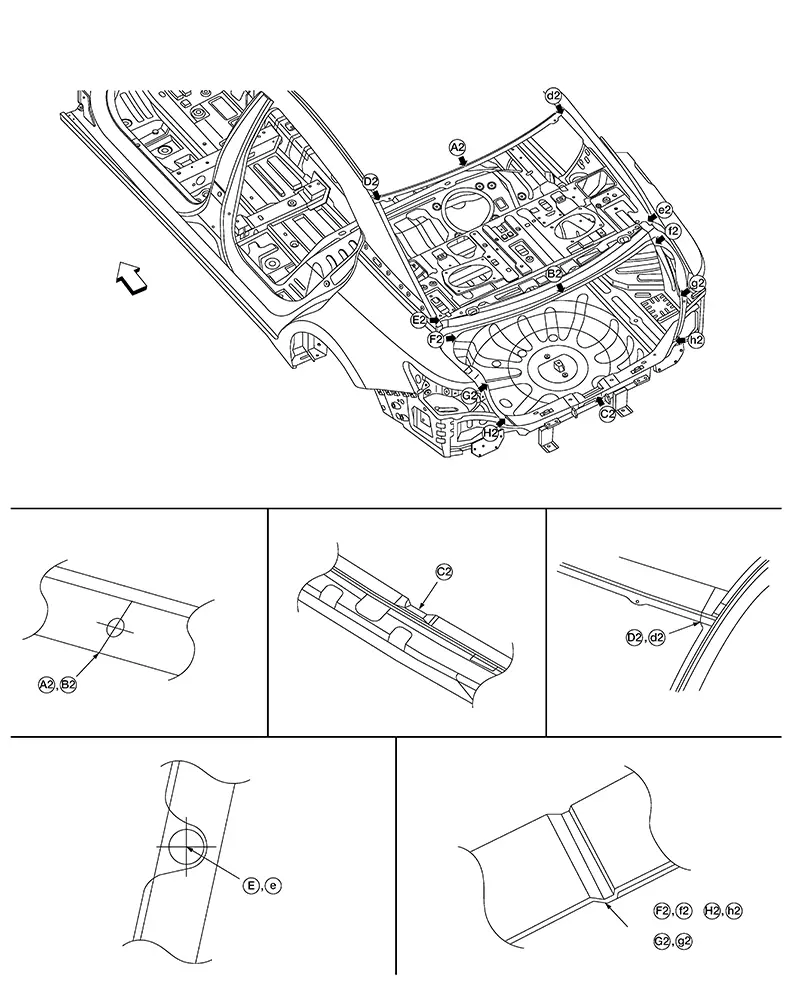

MEASUREMENT POINTS
|
|
Front |
||||
|
Point |
Description |
Point |
Description |
|---|---|---|---|
|
A2, B2 |
Position mark |
C2 |
Rear panel upper flange |
|
D2, d2 |
Back window upper joggle corner |
E2, e2 |
Exterior rear fender location hole |
|
F2, f2 G2, g2 H2, h2 |
Exterior rear fender joggle corner. |
