Compact disc (CD) player
CAUTION
If this occurs, remove the CD and dehumidify or ventilate the player completely.
Decrease/increase the temperature before use.
CHECK DISC:
PRESS EJECT:
This is an error due to excessive temperature inside the player. Remove the CD by pressing the EJECT button. After a short time, reinsert the CD. The CD can be played when the temperature of the player returns to normal.
UNPLAYABLE:
The file is unplayable in this audio system (only MP3 orWMA(if so equipped) CD).
Compact disc with MP3 or WMA
Terms:
The size and quality of a compressed digital audio file is determined by the bit rate used when encoding the file.
* Windows® and Windows Media® are registered trademarks and trademarks in the United States of America and other countries of Microsoft Corporation of the USA.

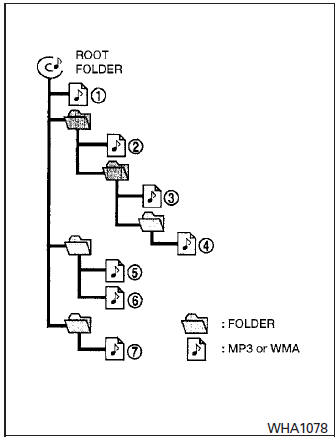

Playback order chart
Playback order:
Music playback order of a CD with MP3 or WMA files is as illustrated.
Therefore, the files might not play in the desired order.
Specification chart:
Supported media | CD, CD-R, CD-RW | ||
Supported file systems | ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet * ISO9660 Level 3 (packet writing) is not supported. | ||
Supported versions*1 | MP3 | Version | MPEG1, MPEG2, MPEG2.5 |
Sampling frequency | 8 kHz - 48 kHz | ||
Bit rate | 8 kbps - 320 kbps, VBR | ||
WMA | Version | WMA7, WMA8, WMA9 | |
Sampling frequency | 32 kHz - 48 kHz | ||
Bit rate | 48 kbps - 192 kbps, VBR | ||
Tag information | ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3 only) | ||
Folder levels | Folder levels: 8, Max folders: 255 (including root folder), Files: 512 (Max. 255 files for one folder) | ||
Text character number limitation | 128 characters | ||
Displayable character codes*2 | 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian) |
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Available codes depend on what kind of media, versions and information are going to be displayed.
Troubleshooting guide:
Symptom | Cause and Countermeasure |
Cannot play | Check if the disc was inserted correctly. |
Check if the disc is scratched or dirty. | |
Check if there is condensation inside the player. If there is, wait until the condensation is gone (about 1 hour) before using the player. | |
If there is a temperature increase error, the CD player will play correctly after it returns to the normal temperature. | |
If there is a mixture of music CD files (CD-DA data) and MP3/WMA files on a CD, only the music CD files (CD-DA data) will be played. | |
Files with extensions other than “.MP3”,“.WMA”, “.mp3” or “.wma” cannot be played. In addition, the character codes and number of characters for folder names and file names should be in compliance with the specifications. | |
Check if the finalization process, such as session close and disc close, is done for the disc. | |
Check if the disc is protected by copyright. | |
Poor sound quality | Check if the disc is scratched or dirty. |
Bit rate may be too low. | |
It takes a relatively long time before the music starts playing. | If there are many folders or file levels on the MP3/WMA disc, or if it is a multisession disc, some time may be required before the music starts playing. |
Music cuts off or skips | The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not match the specifications. Try using the slowest writing speed. |
Skipping with high bit rate files | Skipping may occur with large quantities of data, such as for high bit rate data. |
Moves immediately to the next song when playing | When a non-MP3/WMA file has been given an extension of “.MP3”, “.WMA”, .“mp3”or “.wma”, or when play is prohibited by copyright protection, there will be approximately 5 seconds of no sound and then the player will skip to the next song. |
Songs do not play back in the desired order | The playback order is the order in which the files were written by the writing software. Therefore, the files might not play in the desired order. |
USB (Universal Serial Bus) Connection Port (if so equipped)
WARNING Do not connect, disconnect or operate the USB device while driving. Doing so can be a distraction. If distracted you could lose control of your vehicle and cause an accident or serious injury. |
CAUTION
Pulling the cable may damage the port.
The vehicle is not equipped with a USB device.
USB devices should be purchased separately as necessary.
This system cannot be used to format USB devices.
To format a USB device, use a personal computer.
In some states/area, the USB device for the front seats plays only sound without images for regulatory reasons, even when the vehicle is parked.
This system supports various USB memory devices, USB hard drives and iPod® players. Some USB devices may not be supported by this system.
General notes for USB use:
Notes for iPod® use:
iPod® is a trademark of Apple Inc., registered in the U.S. and other countries.
