Toyota Camry Owner's Manual (2023): Air conditioning filter

The air conditioning filter must be changed regularly to maintain air conditioning efficiency.

Removal method

1. Turn the engine switch off.

2. Open the glove box and remove the glove box cover inside the glove box.

Do-it-yourself maintenance

3. Remove the filter cover.

  1. Unlock the filter cover.

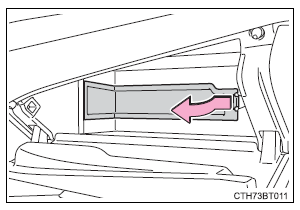

  2. Move the filter cover in the direction of the arrow, and then pull it out of the claws.

Do-it-yourself maintenance

4. Remove the filter case.

There may be foreign objects on top of the air conditioning filter.

Do-it-yourself maintenance

5. Remove the air conditioning filter from the filter case and replace it with a new one.

The "UP" marks shown on the filter and the filter case should be pointing up.

Do-it-yourself maintenance

■Checking interval

Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, please refer to the "Scheduled Maintenance Guide" or "Owner's Manual Supplement".)

■If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

■Air conditioning filter with deodorizing function

When fragrances are placed in your vehicle, the deodorizing effect may become significantly weakened in a short period.

When an air conditioning odor comes out continuously, replace the air conditioning filter.

NOTICE

■When using the air conditioning system

Make sure that a filter is always installed.

Using the air conditioning system without a filter may cause damage to the system.

■To prevent damage to the filter cover

When moving the filter cover in the direction of arrow to release the fitting, pay attention not to apply excessive force to the claws. Otherwise, the claws may be damaged.

Do-it-yourself maintenance
