Nissan Sentra B18 (2020-2025) Service Manual: Adjustment
|

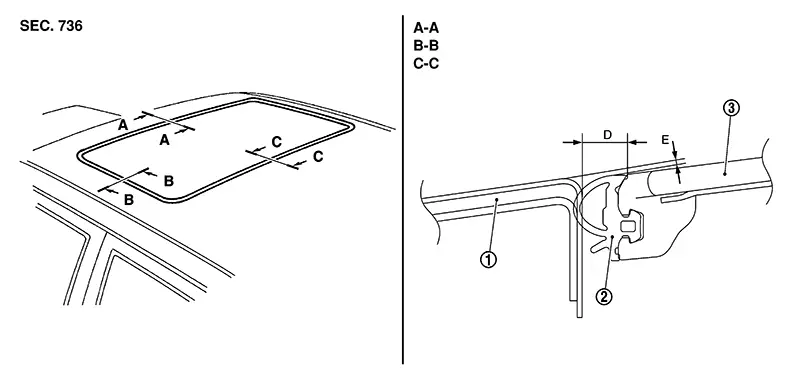

1. |
Roof panel |
2. |
Weather-strip |
3. |
Glass lid |
|
Portion |
Gap (D) |
Surface height difference (E) |
|---|---|---|
|
A – A |
4.0 ± 0.8 (0.16 ± 0.03) |
0.8 ± 1.7 (–0.03 ± 0.06) |
|
B – B |
4.0 ± 0.8 (0.16 ± 0.03) |
0.8 ± 1.7 (–0.03 ± 0.06) |
|
C – C |
4.0 ± 0.8 (0.16 ± 0.03) |
0.8 ± 1.7 (–0.03 ± 0.06) |
Loosen the glass lid bolts.
Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.
First tighten the front bolt (LH), then the rear bolt (RH) on the moonroof lid assembly to prevent uneven torque while tightening the remaining bolts.
Tilt glass
lid up and down several times to check that it moves
smoothly. Note:
After adjusting the moonroof unit assembly, perform additional service. Refer to Special Repair Requirement.
Removal and Installation
Removal and Installation
REMOVAL
CAUTION:
After installing glass lid, check gap/height
adjustments and operation to make sure there is no
malfunction.
...
