Nissan Sentra Service Manual: Symptom diagnosis
Combination switch system symptoms
Symptom Table

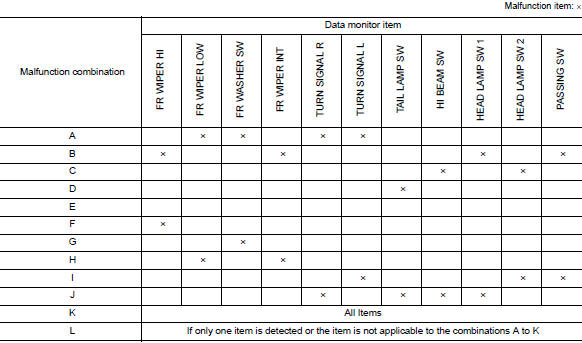

- Perform the data monitor of consult to check for any malfunctioning item.
- Check the malfunction combinations.

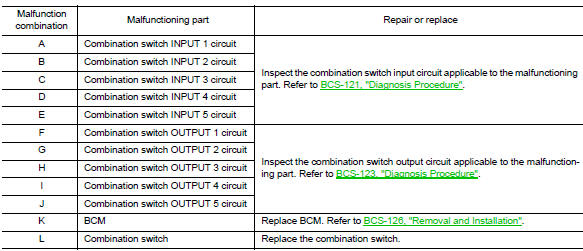

- Identify the malfunctioning part from the agreed combination and repair or replace the part.
Dtc/circuit diagnosis
U1000 can comm
Description
Refer to LAN-7, "CAN COMMUNICATION SYSTEM : System Description".
Dtc logic
Dtc detection logic
Note:
U1000 can be set if a module harness was disconnected an ...
Removal and installation
Bcm (body control module)
Removal and Installation
Note:
Before replacing bcm, perform “read configuration” to save or print
current vehicle specification. Refer
to bcs-116, "conf ...
