Nissan Sentra Service Manual: Preparation

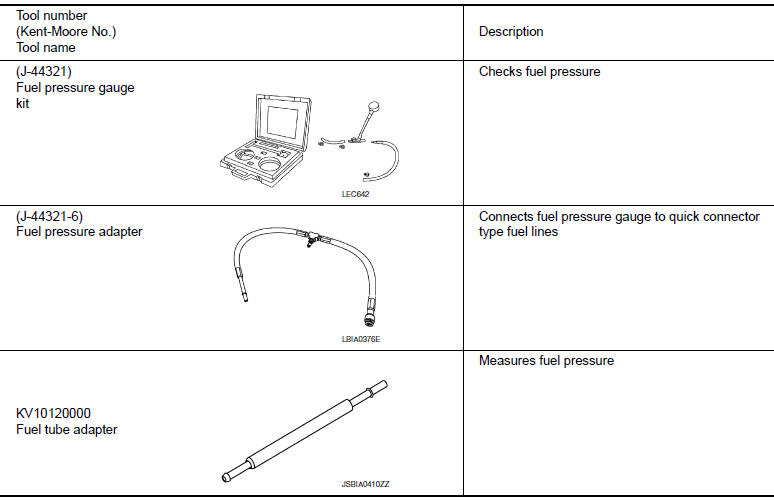

Special Service Tools
NOTE:
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service Tools
General Precautions
Always use a 12 volt battery as power source.
Do not attempt to disconnect battery cables while engine is
running.
Before connecting or disconnecting the ECM harness connector,
turn ignitio ...
