Nissan Sentra Service Manual: Periodic maintenance
Introduction of periodic maintenance
The following tables show the normal maintenance schedule. Depending upon
weather and atmospheric conditions,
varying road surfaces, individual driving habits and vehicle usage, additional
or more frequent maintenance
may be required.
Periodic maintenance beyond the last period shown on the tables requires similar
maintenance.
Emission control system maintenance


Note:
- 1) After 40,000 miles (64,000 km) or 48 months, inspect every 10,000
miles (16,000 km) or 12 months. Replace the drive belts if
found damaged.
- (2) If operating mainly in dusty conditions, more frequent
maintenance may be required.
- 3) Maintenance-free item. For service procedures, refer to the fl
section
- (4) First replacement interval is 105,000 miles (168,000 km) or 84
months. After first replacement, replace every 75,000 miles
(120,000 km) or 60 months.
- (5) Use only Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent with proper mixture ratio of 50% anti-freeze and 50%
demineralized or distilled water. Mixing any other type of coolant or the
use of non-distilled water will reduce the life expectancy of the
factory fill coolant.
- (6) Replace spark plug when the plug gap exceeds 1.35 Mm (0.053 In)
even if within specified periodic replacement mileage.
- (7) Periodic maintenance is not required. However, if valve noise
increases, inspect valve clearance
- Maintenance items and intervals with “*” are recommended by nissan
for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer
recall liability. Other maintenance items and intervals are
required.

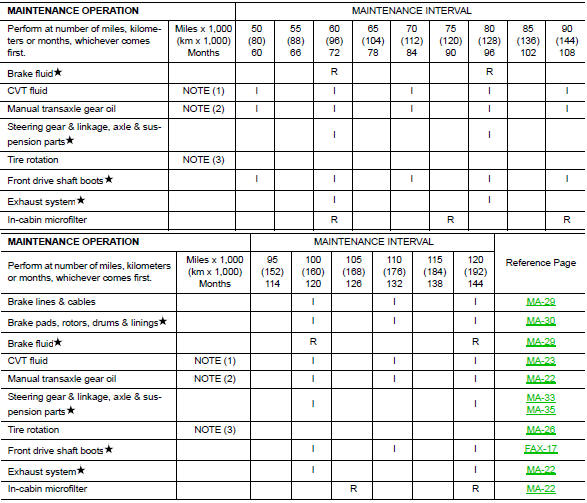

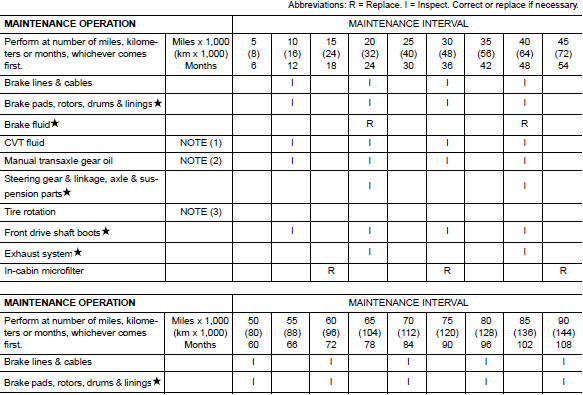

Chassis and body maintenance


Note:
- Maintenance items with “ ” should be performed more frequently
according to “maintenance under severe driving conditions”.
- (1) Use only genuine nissan cvt fluid. If towing a trailer, using a
camper or a car-top carrier or driving on rough or muddy roads,
inspect cvt fluid deterioration at nissan dealer every 60,000 miles (96,000
km), then change cvt fluid if necessary. And if the
inspection is not performed, change (not just inspect) cvt fluid every
60,000 miles (96,000 km). Using transmission fluid other than
genuine nissan cvt fluid will damage the cvt, which is not covered by the
nissan new vehicle limited warranty.
- (2) If towing a trailer, using a camper or a car-top carrier, or
driving on rough or muddy roads, change (not just inspect) oil at every
30,000 miles (48,000 km), 24 months.
- (3) Refer to “tire rotation” under the “general maintenance” heading
earlier in this section.

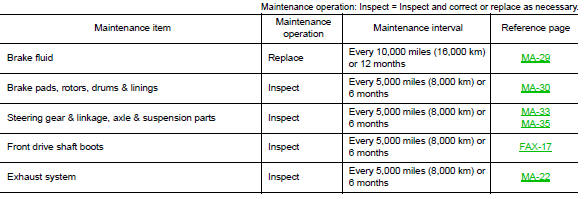

Maintenance under severe driving conditions
The maintenance intervals shown on the preceding pages are for normal
operating conditions. If the vehicle is
mainly operated under severe driving conditions as shown below, more frequent
maintenance must be performed
on the following items as shown in the table.
Severe driving conditions
- Repeated short trips of less than 5 miles (8 km).
- Repeated short trips of less than 10 miles (16 km) with outside
temperatures remaining below freezing.
- Operating in hot weather in stop-and-go “rush hour” traffic.
- Extensive idling and/or low speed driving for long distances, such as
police, taxi or door-to-door delivery use.
- Driving in dusty conditions.
- Driving on rough, muddy, or salt spread roads.
- Towing a trailer, using a camper or a car-top carrier.

Explanation of general maintenance
General maintenance includes those items which should be checked during the
normal day-to-day operation
of the vehicle. They are essential if the vehicle is to c ...
Fluids and lubricants
*1: For additional information, see “engine oil recommendation”.
*2: As an alternative to this recommended oil, sae 5w-30 conventional
petroleum based oil may ...
Other materials:
Front seat belt
Exploded View
D-ring anchor
Seat belt height adjuster cover
Seat belt buckle
Seat belt retractor
Seat belt height adjuster
Lap belt pre-tensioner harness
connector
Shoulder belt pre-tensioner
harness connector
Front
NOTE:
LH side shown; RH side similar.
Removal an ...
Body alignment
Body Center Marks
A mark has been placed on each part of the body to indicate the vehicle
center. When repairing parts damaged
by an accident which might affect the vehicle frame (members, pillars, etc.),
more accurate and effective
repair will be possible by using these marks together with ...
Dtc/circuit diagnosis
Power supply and ground circuit
Audio unit
Audio unit : diagnosis procedure
Regarding Wiring Diagram information, refer to AV-157, "Wiring Diagram".
1.Check fuse
Are the fuses blown?
Yes >> replace the blown fuse after repairing the affected circuit.
No >> go to 2.
...
