Exploded view

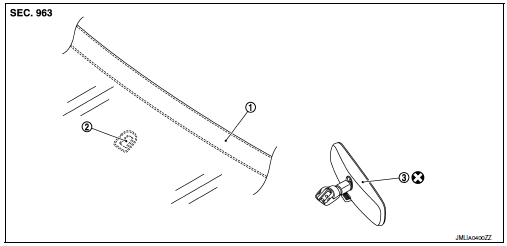

Manual mirror

Windshield glass
Inside mirror base
Inside mirror assembly

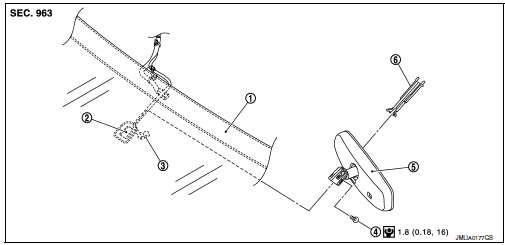

Auto anti-dazzle mirror

Windshield glass
Inside mirror base
Harness connector
Mirror screw
Inside mirror assembly
Inside mirror cover

Removal and installation

Manual mirror

Removal

Insert a suitable tool (A) under the inside mirror (1).
Slide the inside mirror upward while pushing down on the pawl.

Caution:

Do not reuse the inside mirror disassembled from inside mirror base.
Do not use excessive force to remove the inside mirror.
Wrap a suitable tool with a shop cloth to avoid damage to the windshield glass.

Installation

Installation

Installation is in the reverse order of removal.

Caution:

When installing the inside mirror on the mirror base, be sure to push the pawl until it is tightly connected to the mirror base.

Auto anti-dazzle mirror

Removal

Remove the mirror screw from the mirror base.
Disconnect the harness connector from the mirror.

Slide the mirror upward to remove.

Installation

Installation is in the reverse order of removal.
