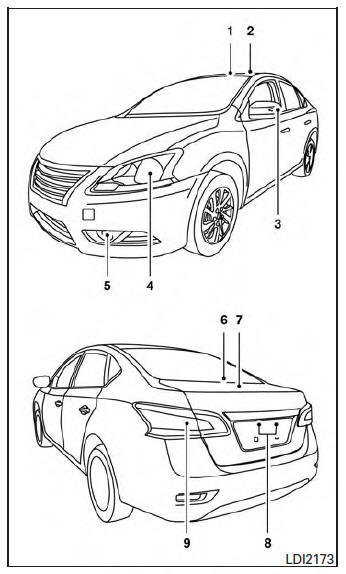

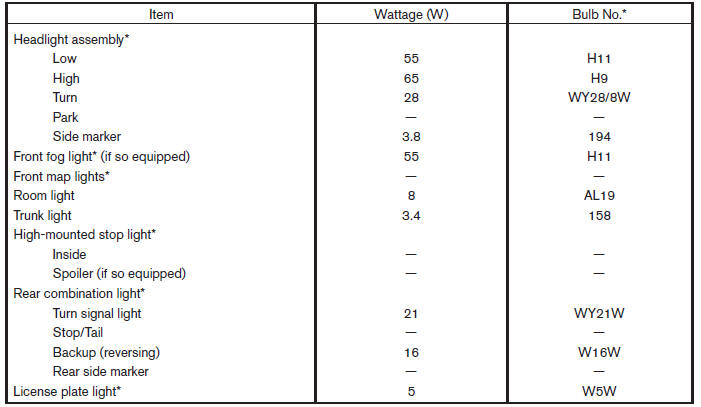

* Always check with the Parts Department at a NISSAN dealer for the latest parts information.


Indicates bulb removal
Indicates bulb replacement
Replacement procedures

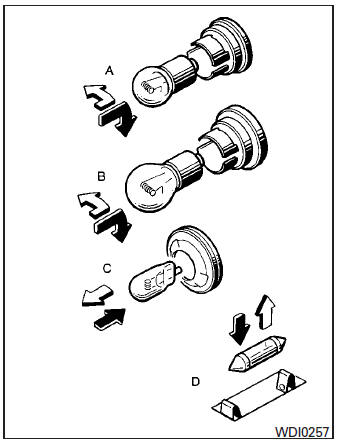

All other lights are either type A, B, C or D. When replacing a bulb, first remove the lens and/or cover.

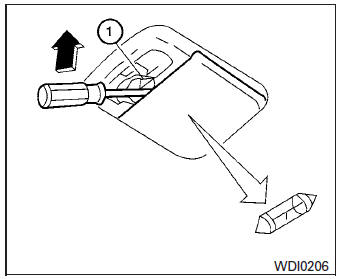

Interior light
Use a cloth 1 to protect the interior light housing.
Fog lights (if so equipped)
Wheels and tiresBasic inspection
Diagnosis and repair work flow
Work flow
Overall sequence
Detailed flow
1.Get information for symptom
Get detailed information from the customer about the symptom (the
condition and the environment when
the incident/malfunction occurs).
Check operation condition of the component o ...
Ecm branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch off.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the ecm for damage, bend and loose
connection (unit side and
connector side).
Is the inspection result normal?
Yes > ...
Unit disassembly and assembly
Center console assembly
Exploded View
Center console upper finisher
Center console side finisher (RH)
Center console side finisher (LH)
Center console side finisher screw cover
(LH/RH)
Center console assembly
Center console screw cover (LH/RH)
Center console rear finisher
C ...
