Nissan Sentra Service Manual: Component parts

Component Parts Location


  1. BCM (view with instrument panel removed)
  2. Remote keyless entry receiver (view with instrument panel removed)
  3. Transmitter
  4. Combination meter

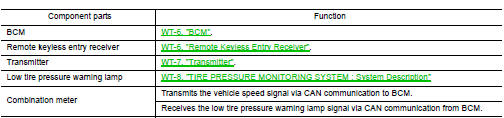

Component Description

BCM


BCM

The BCM reads the tire pressure signal received by the remote keyless entry receiver, and controls the low tire pressure warning lamp and the buzzer operations. It also has a self-diagnosis function to detect a system malfunction.

Remote Keyless Entry Receiver

The remote keyless entry receiver receives the tire pressure signal transmitted by the transmitter in each wheel.

Transmitter

A sensor-transmitter integrated with a valve is installed in each wheel, and transmits a detected tire pressure signal in the form of a radio wave. The radio signal is received by the remote keyless entry receiver.

Low Tire Pressure Warning Lamp

The combination meter receives tire pressure status from the BCM using CAN communication. When a low tire pressure condition is sensed by the BCM, the combination meter low tire pressure warning lamp is activated.

Combination Meter

The combination meter receives tire pressure status from the BCM via CAN communication. The combination meter will display the low tire pressure warning lamp when a low tire pressure or system malfunction is detected by the BCM. A warning message will also be displayed in the vehicle information display. Refer to the Owner’s Manual for additional information.
