Nissan Sentra Service Manual: Blower motor

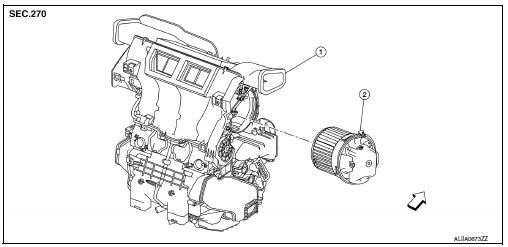

Exploded View


  1. Heating and cooling unit assembly
  2. Blower motor

Removal and Installation Front


Removal and Installation

  1. Remove the glove box assembly. Refer to IP-22, "Removal and Installation".
  2. Disconnect the harness connector from the blower motor.
  3. Remove the blower motor screws.
  4. Remove the blower motor.

INSTALLATION

Installation is in the reverse order of removal.
