Power windows
WARNING
|
The power windows operate when the ignition switch is placed in the ON position, or for a period of time after the ignition switch is placed in the OFF position. If the driver’s or passenger’s door is opened during this period of time, the power to the windows is canceled.

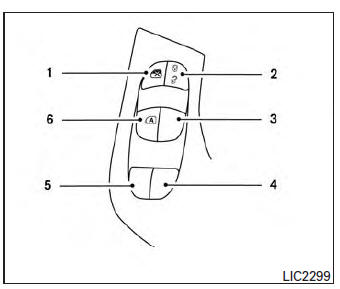

Driver’s side power window switch
The driver’s side control panel is equipped with switches to open or close all of the windows.
To open a window, push the switch to the first detent and continue to hold down until the desired window position is reached. To close a window, pull the switch to the first detent and continue to hold up until the desired window position is reached.
Front passenger’s power window switch

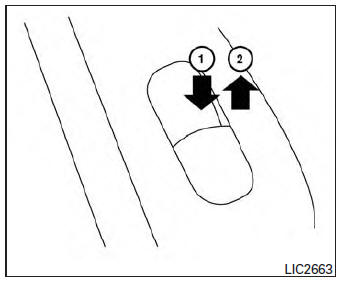

The passenger’s window switch operates only the corresponding passenger’s window. To open the window, push the switch to the first detent and continue to hold it down until the desired window position is reached 1 . To close the window, pull the switch to the first detent and continue to hold it up until the desired window position is reached 2 .
Rear power window switch
The rear power window switches open or close only the corresponding windows. To open the window, push the switch and hold it down 1 . To close the window, pull the switch up 2 .
Locking passengers’ windows
When the window lock button is depressed, only the driver’s side window can be opened or closed. Push it again to cancel the window lock function.

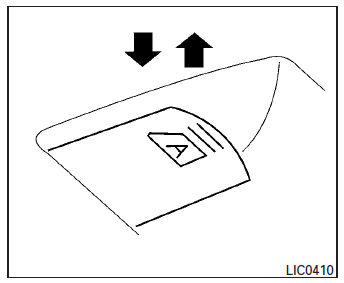

Automatic operation
To fully open a window equipped with automatic operation, press the window switch down to the second detent and release it; it need not be held.
The window automatically opens all the way. To stop the window, lift the switch up while the window is opening.
To fully close a window equipped with automatic operation, pull the switch up to the second detent and release it; it need not be held. The window automatically closes all the way. To stop the window, press the switch down while the window is closing.
Auto-reverse function
The auto-reverse function can be activated when a window is closed by automatic operation.
Depending on the environment or driving conditions, the auto-reverse function may be activated if an impact or load similar to something being caught in the window occurs.
WARNING There are some small distances immediately before the closed position which cannot be detected. Make sure that all passengers have their hands, etc., inside the vehicle before closing the window. |
If the vehicle’s battery is disconnected, replaced, or jump started, the power window auto-reverse function may not operate properly. If this occurs, please contact the dealer to re-initialize the power window auto-reverse system.
If the control unit detects something caught in a window equipped with automatic operation as it is closing, the window will be immediately lowered.
When the automatic operation for the driver’s power window switch does not operate
If the automatic operation for the driver’s power window switch does not operate properly, perform the following procedure to initialize the power window switch.
Initialization is now complete. The automatic operation for the driver’s power window switch should now operate.
If the automatic operation does not operate properly after performing the above procedure, see a NISSAN dealer for assistance.
No initialization is required for all the other window switches.
