Nissan Sentra Service Manual: Washer switch
Description

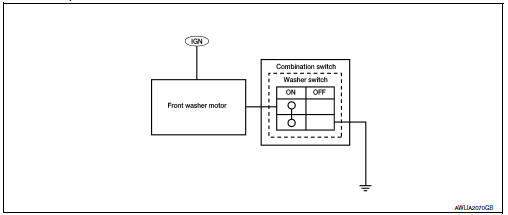

- Washer switch is integrated with combination switch (wiper and washer switch).
- Combination switch (wiper and washer switch) supplies ground and fuse # 6 supplies power for the front washer motor to operate.
Component Inspection
Regarding wiring diagram information, refer to ww-24, "wiring diagram - with intelligent key" or ww-29, "wiring diagram - without intelligent key".
1. Check washer switch
- Turn the ignition switch off.
- Disconnect combination switch (wiper and washer switch) connector m28.

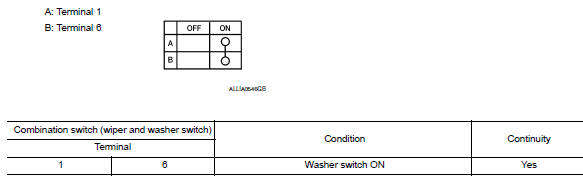

- Check continuity between the combination switch (wiper and washer switch) terminals.
Is the inspection result normal? YES >> Washer switch is normal.
NO >> Replace combination switch (wiper and washer switch). Refer to WW-63, "Removal and Installation".
Washer motor circuit
Diagnosis Procedure
Regarding Wiring Diagram information, refer to WW-24, "Wiring Diagram - With
Intelligent Key" or WW-29,
"Wiring Diagram - Without Intelligent Key".
1. Chec ...
