Identification information
Model Variation
Identification Number

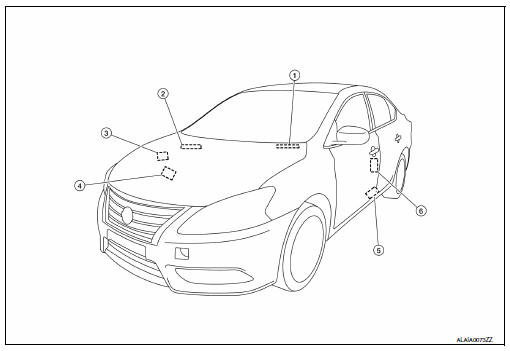

Vehicle identification number (VIN) plate

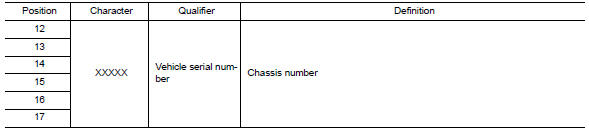

Vehicle identification number (chassis number)
Emission control information label
Air Conditioner specification label
F.M.V.S.S./C.M.V.S.S. certification label
Tire and loading information label

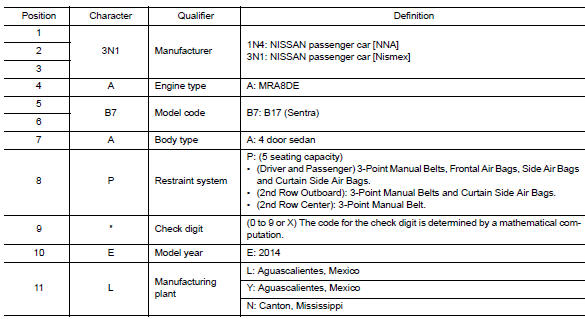

Vehicle Identification Number Arrangement
Identification Plate

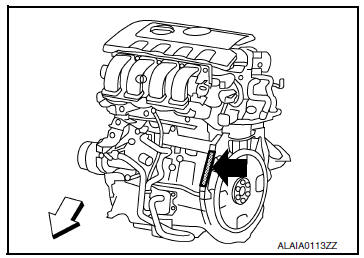

Engine Serial Number
MRA8DE
CVT Number
Manual Transaxle Number

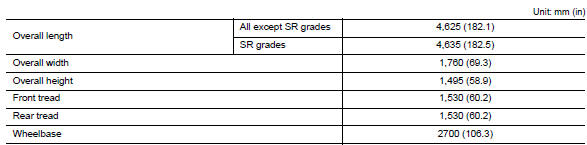

Dimensions
Wheels & Tires
Symptom diagnosis
HEATER AND AIR CONDITIONING SYSTEM
CONTROL SYMPTOMS
Symptom Table
INSUFFICIENT COOLING
Component Function Check
Symptom: insufficient cooling
Inspection flow
1. Confirm symptom by performing operation check - temperature decrease
Press the a/c switch.
Turn temperature control dial c ...
Dtc/circuit diagnosis
Power supply and ground circuit
Audio unit
Audio unit : diagnosis procedure
Regarding wiring diagram information, refer to av-25, "wiring diagram".
1.Check fuse
Check that the following fuses are not blown.
Are the fuses blown?
Yes >> replace the blown fuse after repairing t ...
Dlc branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the data link connector for
damage, bend and loose connection
(connector side and harness side).
Is the inspection resul ...
