■ Front turn signal/parking lights (bulb type)

1. Turn the bulb base counterclockwise.

Do-it-yourself maintenance

2. Remove the light bulb.

Do-it-yourself maintenance

3. Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.

Do-it-yourself maintenance

■ Front side marker lights (bulb type)

1. To ensure enough space to perform work, turn the steering wheel to move the front wheel away from the light bulb to be replaced.

Turn the steering wheel to the left when replacing the right side light bulb, and turn the steering wheel to the right when replacing the left side light bulb.

Do-it-yourself maintenance

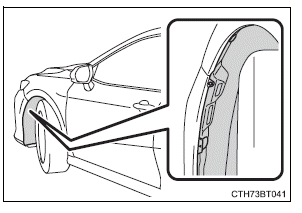

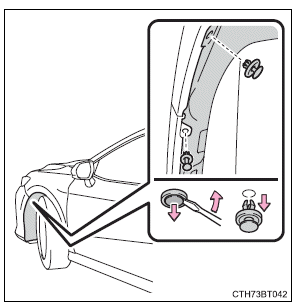

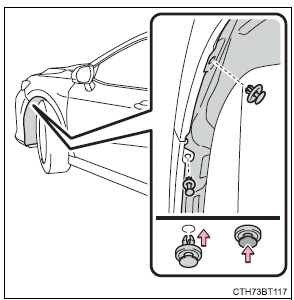

2. Remove the fender liner clips.

Do-it-yourself maintenance

3. To protect the front bumper from being damaged, apply protective tape around the clip as shown in the illustration.

Use masking tape, etc. Do not use duct tape, as it may leave residue or damage the paint when removed.

Do-it-yourself maintenance

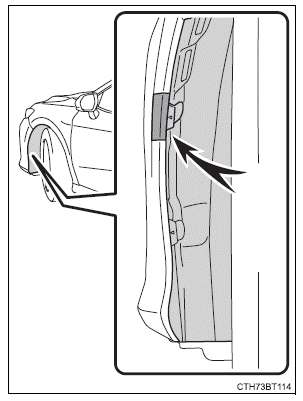

4. Insert a small flathead screwdriver between the front bumper and fender liner at the position marked with a "" and then separate the front bumper from the fender liner.

To separate the front bumper from the fender liner, pry up the fender liner while pulling the front bumper outward as shown in the illustration.

Do-it-yourself maintenance

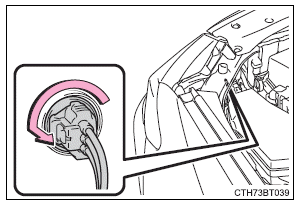

5. Pull back the fender liner and turn the bulb base counterclockwise.

Do-it-yourself maintenance

6. Remove the light bulb.

Do-it-yourself maintenance

7. Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.

Do-it-yourself maintenance

8. Return the fender liner to its original position, and install the clips.

Make sure that the fender liner is correctly positioned on the inner side of the front bumper.

Do-it-yourself maintenance

9. To Install the fender liner to the front bumper, engage the clip to the front bumper.

Do-it-yourself maintenance

10. Remove the protective tape.

■ Back-up lights (bulb type)

1. Open the trunk lid and remove the clips.

Do-it-yourself maintenance

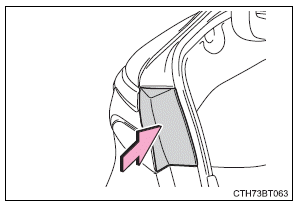

2. Partly remove the trunk lid cover.

Do-it-yourself maintenance

3. Disconnect the connector while depressing the lock release. (When replacing right side bulb only.)

Do-it-yourself maintenance

4. Turn the bulb base counterclockwise.

Do-it-yourself maintenance

5. Remove the light bulb.

Do-it-yourself maintenance

6. Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.

Do-it-yourself maintenance

7. Connect the connector.

(When replacing right side bulb only.)

Do-it-yourself maintenance

8. Reinstall the trunk lid cover with the clips.

Do-it-yourself maintenance

■ Rear turn signal lights (bulb type) and rear side marker lights (bulb type)

1. Open the trunk and apply protective tape to the vehicle body around the light unit.

Use masking tape, etc. Do not use duct tape, as it may leave residue or damage the paint when removed.

Do-it-yourself maintenance

2. Remove the cover.

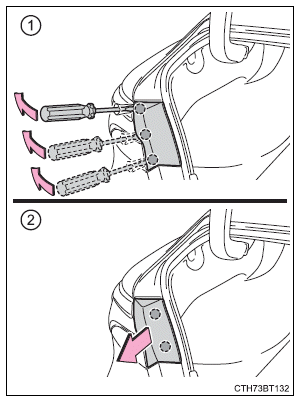

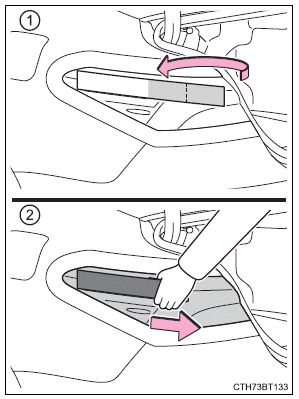

  1. Insert a flathead screwdriver between the cover and the light unit and pry up the cover in several positions as shown in the illustration to disengage the claws (indicated by a dotted line).
  2. Pull the cover toward the rear of the vehicle to disengage the claws (indicated by a dotted line) and remove the cover.

Do-it-yourself maintenance

To prevent scratching the vehicle, wrap the tip of the flathead screwdriver with a cloth, etc.

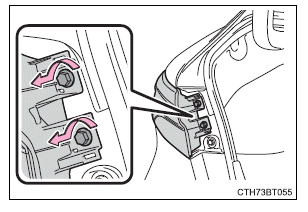

3. Remove the 2 bolts.

Do-it-yourself maintenance

4. Remove the light unit.

  1. Attach a long piece of packing tape to the light unit and fold the excess in half.
  2. Hold the folded portion and pull it toward the rear of the vehicle to remove the light unit.

Do-it-yourself maintenance

5. Turn the bulb base counterclockwise.

Rear turn signal lights

Do-it-yourself maintenance

Rear side marker lights

Do-it-yourself maintenance

6. Remove the light bulb.

Rear turn signal lights

Do-it-yourself maintenance

Rear side marker lights

Do-it-yourself maintenance

7. Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.

Rear turn signal lights

Do-it-yourself maintenance

Rear side marker lights

Do-it-yourself maintenance

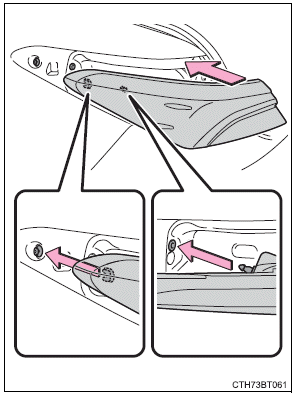

8. Install the light unit.

Align the tabs and push the light unit toward the front of the vehicle to install it.

Do-it-yourself maintenance

9. Install the 2 bolts.

Do-it-yourself maintenance

10. Install the cover.

Do-it-yourself maintenance

11. Remove the protective tape.

■ Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by your Toyota dealer.

■LED light bulbs

The lights other than the front turn signal/parking lights (bulb type), front side marker lights (bulb type), back-up lights (bulb type), rear turn signal lights (bulb type) and rear side marker lights (bulb type) consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced.

■Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not indicate a malfunction.

Contact your Toyota dealer for more information in the following situations:

WARNING

■Replacing light bulbs

■To prevent damage or fire

Make sure bulbs are fully seated and locked.

Light bulbs
You may replace the following bulbs yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer. ...
