Toyota Camry Owner's Manual (2023): Emergency flashers
The emergency flashers are used to warn other drivers when the vehicle has to be stopped on the road due to a breakdown, etc.

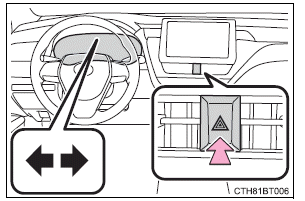

Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once again.
â– Emergency flashers
- If the emergency flashers are used for a long time while the engine is not operating, the battery may discharge.
- If any of the SRS airbags deploy (inflate) or in the event of a strong
rear
impact, the emergency flashers will turn on automatically.
The emergency flashers will turn off automatically after operating for approximately 20 minutes. To manually turn the emergency flashers off, press the switch twice.
(The emergency flashers may not turn on automatically depending on the force of the impact and conditions of the collision.)
If your vehicle has
to be stopped in
an emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the following
procedure:
1. Steadily step on the brake pedal with both feet and ...
