Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation. Adas Control Unit 2

Adas Control Unit 2

Removal and Installation

Removal and Installation

REMOVAL

CAUTION:

Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT 2” when replacing ADAS control unit 2. Refer to Description.

Remove instrument panel assembly. Refer to Removal and Installation.

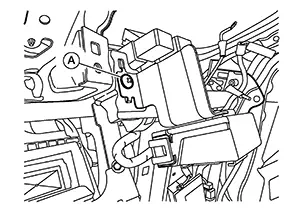

Remove screw (A).

Disconnect harness connector from ADAS control unit 2 and remove ADAS control unit 2.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT 2” when replacing ADAS control unit 2. Refer to Description.
