Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
CAUTION:
Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING INTELLIGENT KEY UNIT” when replacing Intelligent Key unit. Refer to Work Procedure.
Remove instrument panel assembly. Refer to Removal and Installation.
Disconnect the harness connector from the Intelligent Key unit.

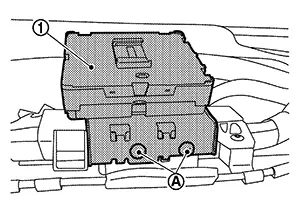

Remove
screw (A) and remove Intelligent Key unit (1).
INSTALLATION
CAUTION:
Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING INTELLIGENT KEY UNIT” when replacing Intelligent Key unit. Refer to Work Procedure.
Installation is in reverse order of removal.
