Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
CAUTION:
-
Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately and wash the affected area with water.
-
Do not disassemble clutch master cylinder.
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
Drain clutch fluid. Refer to Draining.
Remove battery. Refer to Removal and Installation (Battery).
Using a suitable tool, remove reservoir hose from reservoir tank.

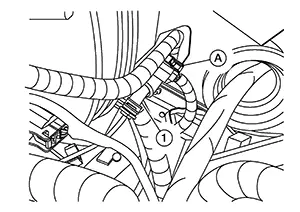

Disconnect
the wiring harness connector (A) from clutch master cylinder
(1).
Release the
lock pin (1) from connector of clutch master cylinder (2) and
separate clutch tube (3).
Remove clutch pedal. Refer to Removal and Installation.
Remove clutch master cylinder from the Nissan Sentra vehicle.
Using a suitable tool, remove reservoir hose from clutch master cylinder.
INSTALLATION
CAUTION:
Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately and wash the affected area with water.
Installation is in the reverse order of removal.
CAUTION:
Press clutch master cylinder rod end into clutch pedal until it stops.
Fill with clutch fluid and perform air bleeding procedure. Refer to Refilling and Air Bleeding.
Exploded View
Exploded View
1.
Reservoir tank
2.
...
Inspection and Adjustment
Inspection and Adjustment
INSPECTION AFTER INSTALLATION
Check for
fluid leakage and the fluid level. Refer to Inspection.
Check the
clutch pedal height. Refer to Inspection and Adjust ...
