Nissan Sentra B18 (2020-2025) Service Manual: Refrigerant Cycle

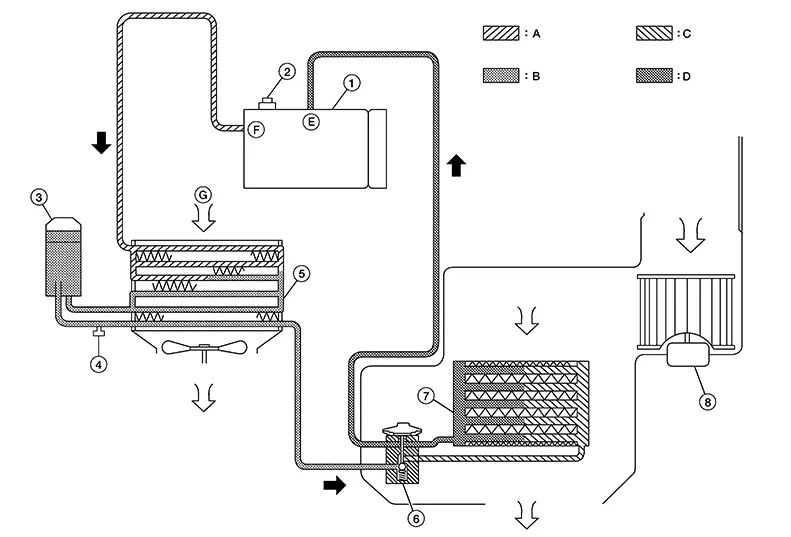

Refrigerant flow
|
1. |
Electric compressor |
2. |
Pressure relief valve |
3. |
Liquid tank |
|
4. |
Refrigerant pressure sensor |
5. |
Condenser |
6. |
Expansion valve |
|
7. |
Evaporator |
8. |
Blower motor |
A. |
High-pressure gas |
|
B. |
High-pressure liquid |
C. |
Low-pressure liquid |
D. |
Low-pressure gas |
|
E. |
Suction port |
F. |
Discharge port |
G. |
Outside air |
Refrigerant Flow
The refrigerant from the compressor flows through the condenser and liquid tank, the evaporator and returns to the compressor. The refrigerant evaporation in the evaporator is controlled by an expansion valve.
Freeze Protection
To prevent the evaporator from freezing up, the evaporator air temperature is monitored by the intake sensor and the voltage signal to the A/C auto amp. makes the A/C relay go OFF and stop the compressor.
Internal Heat Exchanger
Internal Heat Exchanger
Transfers heat out of the liquid refrigerant, sub
cooling it below condensation temperature.
...
Refrigerant System Protection
Refrigerant System Protection
Refrigerant pressure sensor
The refrigerant system is protected against
excessively high or low pressures by the refrigerant pressure
sensor, located on the h ...
