Toyota Camry (XV70): Rear seats (folding type)
The seatbacks of the rear seats can be folded down.

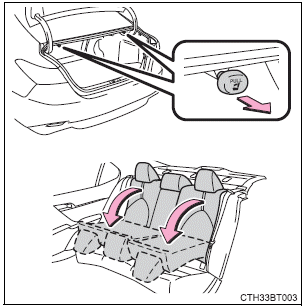

Folding down the rear seatbacks
Pull the seatback lever in the trunk
for the seatback you wish to fold
down and then fold the seatback
down.
WARNING
■When folding the seatbacks down
- Observe the following precautions. Failure to do so may result in
death or
serious injury.
- Do not fold the seatbacks down while driving.
- Stop the vehicle on level ground, set the parking brake and shift the
shift
lever to P.
- Do not allow anyone to sit on a folded seatback or in the trunk while
driving.
- Do not allow children to enter the trunk.
■When returning the seat to its original position
- Ensure that the seat belt does not get caught between or behind the
seats.
- If the seat belt has been released from its guide, pass the seat belt
through
its guide.
■Seat adjustment
Be careful not to get hands or feet pinched between the rear console box
and the rear seat when folding down the rear seatback.
■After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
- Make sure the seatback is securely locked by pressing it forward and
rearward
on the top.
- Check that the seat belts are not twisted or caught in the seatback.
- Make sure that the seat belt is passed through its guide.
NOTICE
■When the right seatback is folded down
Make sure the luggage loaded in the enlarged trunk will not damage the
webbing of the rear center seat belt.
