Toyota Camry (XV70): Head restraints
Head restraints are provided for all seats.

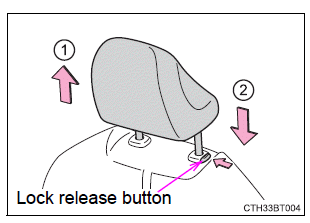

Adjustable type
- Up
Pull the head restraint up.
- Down
Push the head restraint down while
pressing the lock release button.
Integrated type
Head restraints cannot be adjusted or removed.
■Removing the head restraints
Pull the head restraint up while pressing
the lock release button.
Front seats: If the head restraint touches
the ceiling, making the removal difficult,
change the seat height or angle.
■Installing the head restraints
Front seats
Align the head restraint with the installation
holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Rear seats
Align the head restraint with the installation
holes and push it down to the lowest
lock position while pressing the lock
release button.
■Adjusting the height of the head restraints
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure
to
do so may result in death or serious injury.
- Use the head restraints designed for each respective seat.
- Adjust the head restraints to the correct position at all times.
- After adjusting the head restraints, push down on them and make sure
they are locked in position.
- Do not drive with the head restraints removed.
