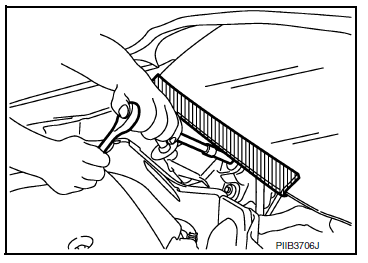

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc.
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
Cautions in Removing Battery Terminal and AV Control UnitRemoval and installation
Power socket
Removal and installation
Front console power socket
Removal
Remove the cvt/mt shift selector finisher. Refer to ip-14, "exploded
view".
Remove cap from the front console power socket.
Remove the screws (a) and the storage bin (1).
Disconnect the harness ...
Diagnosis system (ipdm e/r) (without intelligent key system)
Diagnosis Description
AUTO ACTIVE TEST
Description
In auto active test, the IPDM E/R sends a drive signal to the following
systems to check their operation.
Front wiper (LO, HI)
Parking lamp
License plate lamp
Tail lamp
Front fog lamp (if equipped)
Headlamp (LO, HI)
A/C compress ...
Under cover
Front under cover
Front under cover : removal and installation
REMOVAL
Remove front side of front fender protector (LH/RH). Refer to EXT-28,
"FENDER PROTECTOR : Removal
and Installation - Front Fender Protector".
Remove engine under cover. EXT-31, "ENGINE UNDER COVER : Re ...
