Special Service Tool
The actual shape of the tools may differ from those illustrated here.

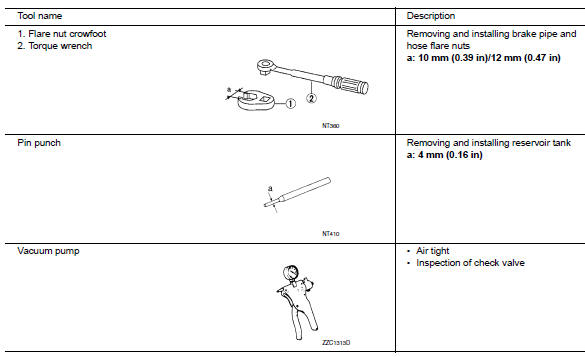

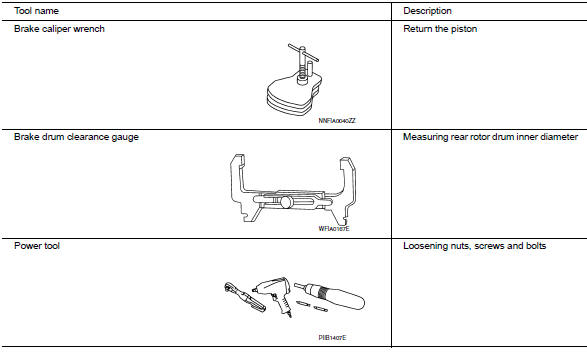

Commercial Service Tool


Precaution for Brake System
System descriptionDtc/circuit diagnosis
U1000 can comm circuit
Description
Refer to LAN-7, "CAN COMMUNICATION SYSTEM : System Description".
Dtc logic
Dtc detection logic
Consult display
Dtc detection condition
Possible cause
Can comm circuit
[u1000]
When ipdm e/r cannot communicate with can comm ...
DTC/circuit diagnosis
U1000 CAN COMM CIRCUIT
Description
CAN (Controller Area Network) is a serial communication system for real time
application. It is an on-vehicle
multiplex communication system with high data communication speed and excellent
error detection ability.
Many electronic control units are equip ...
Steering gear and linkage
Inspection
INSPECTION AFTER DISASSEMBLY
BOOT
Check boot for cracks. Replace if any damage is found.
STEERING GEAR ASSEMBLY HOUSING
Check steering gear assembly housing for damage and
scratches. Replace if there are any abnormal conditions.
OUTER SOCKET AND INNER SOCKET
B ...
