Nissan Sentra B18 (2020-2025) Service Manual: Moonroof

Nissan Sentra B18 (2020-2025) Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Roof :: System Description / Component Parts / Moonroof

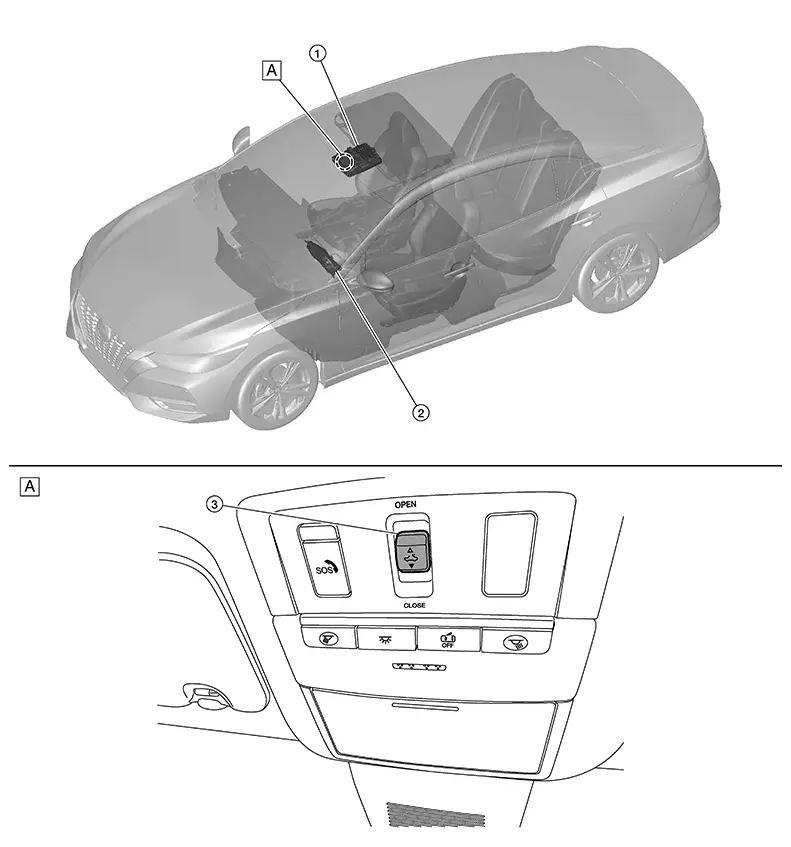

Component Parts Location

Component Parts Location

A.	View of moonroof switch finisher

No.	Component	Function
1.	Moonroof motor assembly	The moonroof motor and CPU are integrated into one unit that opens/closes based on the moonroof switch operation input. Refer to Moonroof Motor Assembly.
2.	Combination meter	Transmits the Nissan Sentra vehicle speed signal to moonroof motor assembly. Refer to Component Parts Location (Type A) or Component Parts Location (Type B) for detailed component location.
3.	Moonroof switch assembly	Transmits open/close operation signal to the moonroof motor assembly. Refer to Moonroof Switch Assembly.

No.

Component

Function

Moonroof motor assembly

The moonroof motor and CPU are integrated into one unit that opens/closes based on the moonroof switch operation input.

Refer to Moonroof Motor Assembly.

Combination meter

Transmits the Nissan Sentra vehicle speed signal to moonroof motor assembly.

Refer to Component Parts Location (Type A) or Component Parts Location (Type B) for detailed component location.

Moonroof switch assembly

Transmits open/close operation signal to the moonroof motor assembly.

Refer to Moonroof Switch Assembly.

Moonroof Switch Assembly

Moonroof Switch Assembly

COMPONENT FUNCTION WITHIN SYSTEM

Moonroof switch is located in the overhead center console.
Moonroof switch assembly controls moonroof motor assembly.

INDIVIDUAL COMPONENT FUNCTION

Transmits operation signal to moonroof motor assembly.

Moonroof Motor Assembly

Moonroof Motor Assembly

COMPONENT FUNCTION WITHIN SYSTEM

Moonroof motor assembly is located at front of moonroof unit assembly.
Moonroof motor assembly controls sunroof.
Moonroof motor assembly controls automatic operation.
Moonroof motor assembly controls anti-pinch function.

INDIVIDUAL COMPONENT FUNCTION

Opens/closes and tilts up/down the sunroof.
