Nissan Sentra Service Manual: Ground

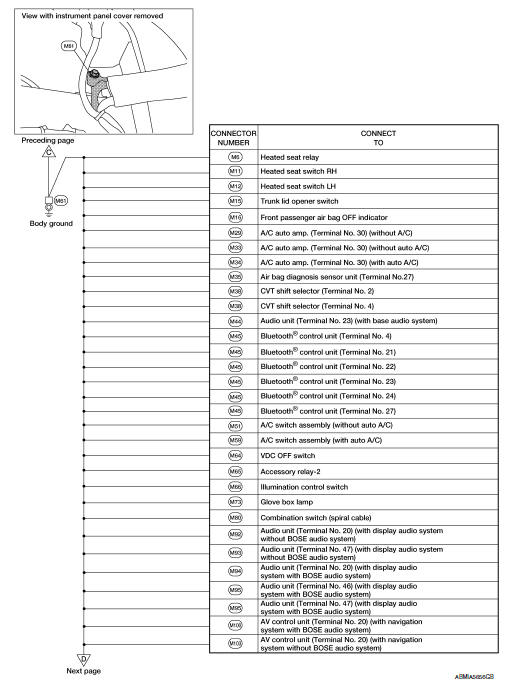

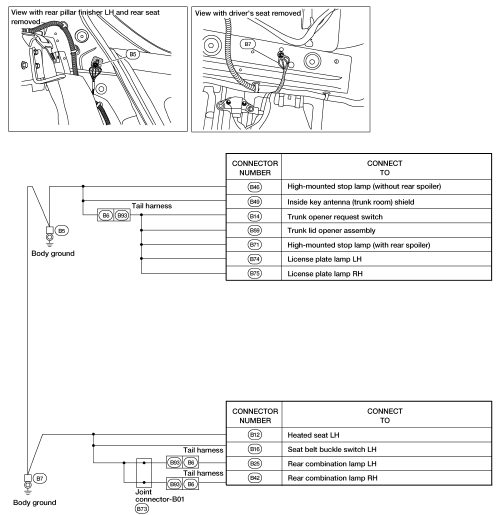

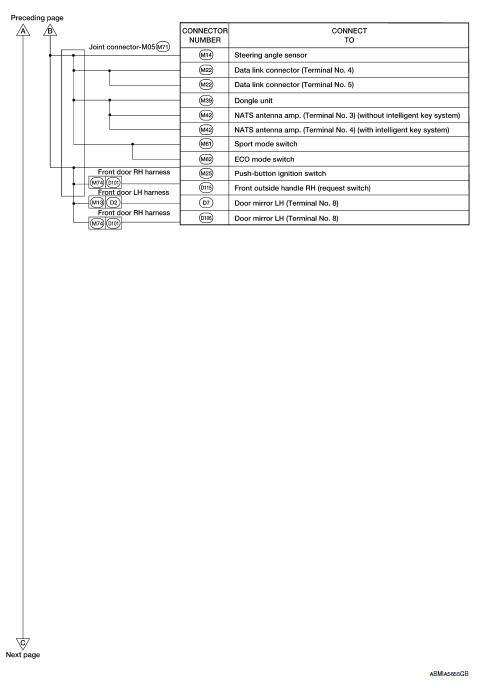

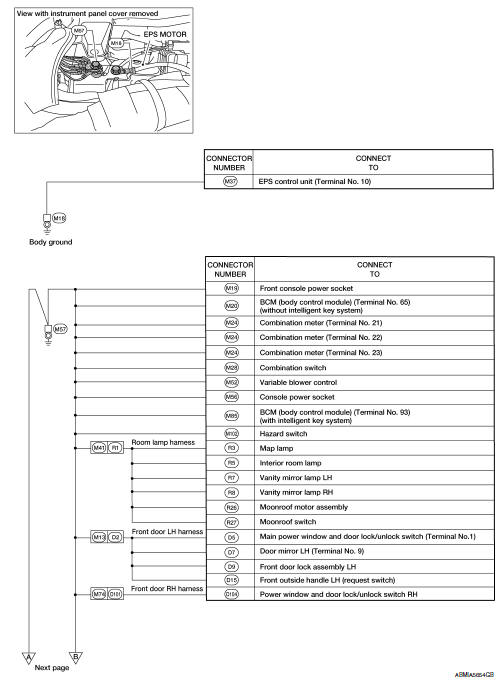

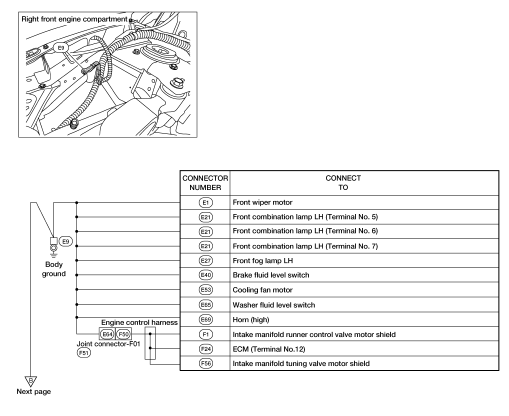

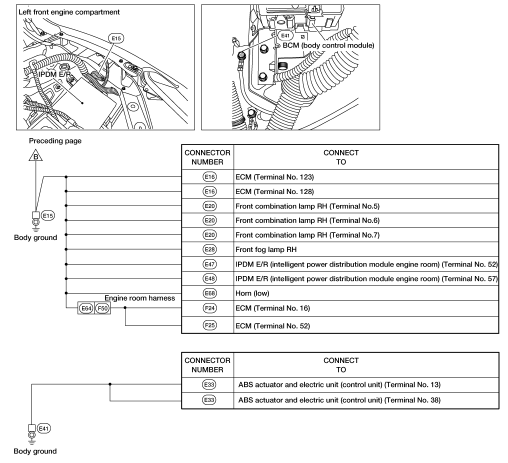

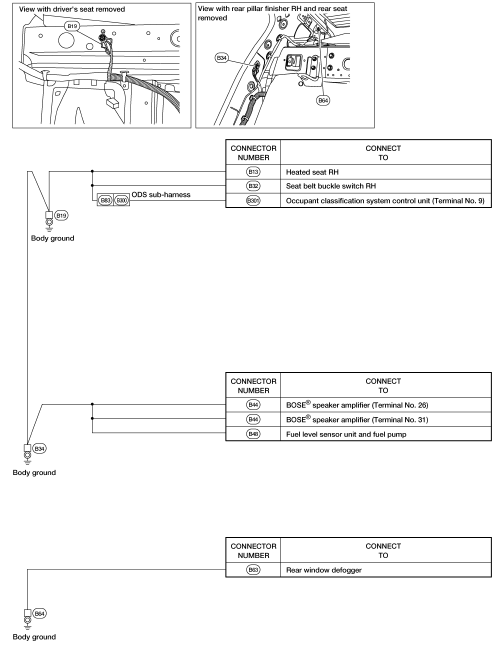

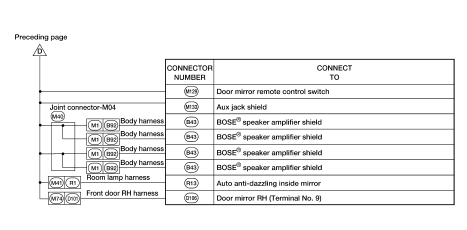

Ground distribution

Main harness





Engine room harness


Engine room harness


Engine control harness


Engine control harness

Body harness


Body harness

Electrical units location


Power supply routing circuit
Wiring Diagram — Battery Power Supply — Wiring Diagram — Accessory Power Supply — Wiring Diagram — Ignition Power Supp ...

Electrical units location
Electrical units location Engine compartment Passenger compartment Luggage compartment ...
