Nissan Sentra B18 (2020-2025) Service Manual: Front Tweeter

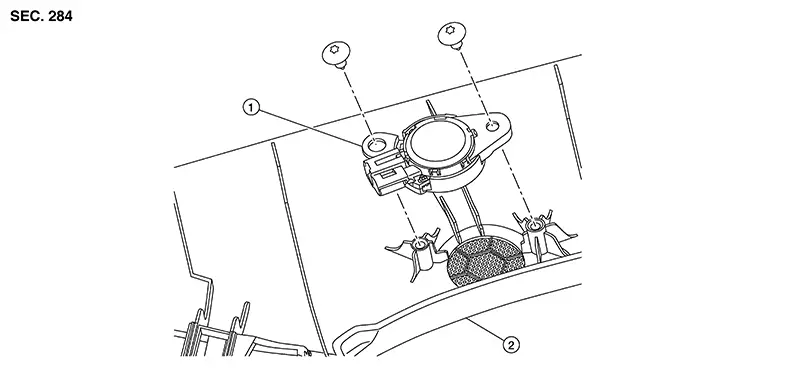

Exploded View
|
1. |
Front tweeter |
2. |
Front pillar finisher |
Removal and Installation
REMOVAL
Remove front pillar finisher. Refer to Removal and Installation.
Remove screws from front tweeter and remove.
INSTALLATION
Installation is in the reverse order of removal.
