Nissan Sentra B18 (2020-2025) Service Manual: Final Drive

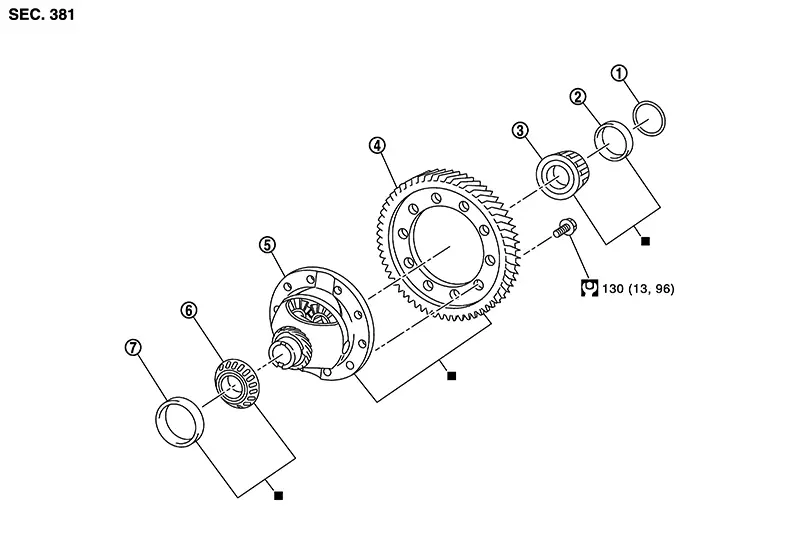

Exploded View

Exploded View

1.

Shim

2.

Differential side bearing outer race (transaxle case side)

3.

Differential side bearing inner race (transaxle case side)

4.

Final gear

5.

Differential case

6.

Differential side bearing inner race (clutch housing side)

7.

Differential side bearing outer race (clutch housing side)



Disassembly

Disassembly

Remove differential side bearing inner race (clutch housing side) (1) with the following procedure. Set a suitable tool to differential side bearing inner race (clutch housing side). Remove differential side bearing inner race (clutch housing side) using Tool (A).

Tool number

: ST33061000 (NI-8107-2)

Remove final gear mounting bolts and remove final gear (1).

Remove differential side bearing inner race (transaxle case side) (1) with the following procedure. Set a suitable tool to differential side bearing inner race (transaxle case side). Remove differential side bearing inner race (transaxle case side) using a suitable tool (A).

Assembly

Assembly

Install final gear, and then tighten final gear mounting bolts to the specified torque.

CAUTION:

Replace final gear and differential case as a set.

Install differential side bearing inner race (clutch housing side) using a suitable tool (A).

CAUTION:

Replace differential side bearing inner race (clutch housing side) and differential side bearing outer race (clutch housing side) as a set.

Install differential side bearing inner race (transaxle case side) using a suitable tool (A).

CAUTION:

Replace differential side bearing inner race (transaxle case side) and differential side bearing outer race (transaxle case side) as a set.

Inspection

Inspection

INSPECTION AFTER DISASSEMBLY

Gear and Case

Check final gear and differential case.

Replace if necessary.

Bearing

Check bearing for damage and uneven rotation. Replace if necessary.
