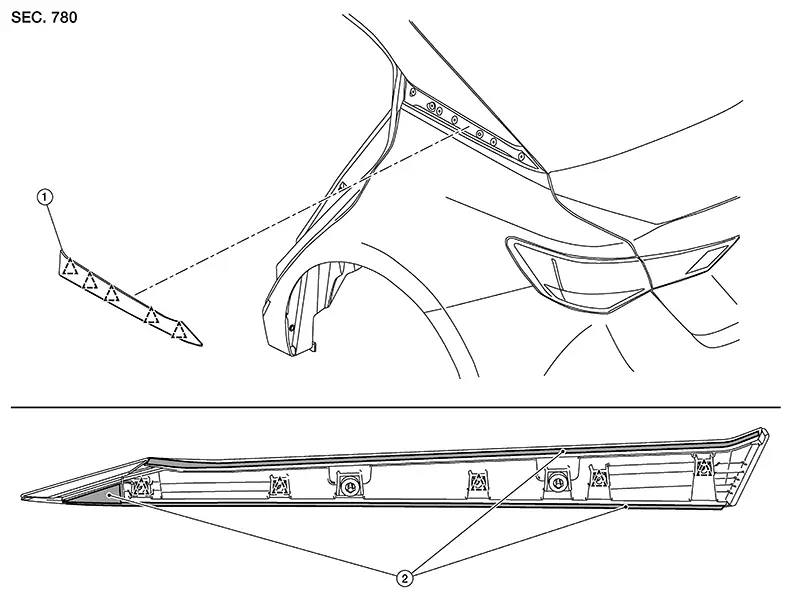

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Rear fender cover |
2. |
Seal |
|
Clip |
Removal and Installation
Removal and Installation
REMOVAL
Using
suitable tool, lift rear fender cover to release clips. Refer to Exploded View.
Remove rear
fender cover.
INSTALLATION
Installation is in t ...
